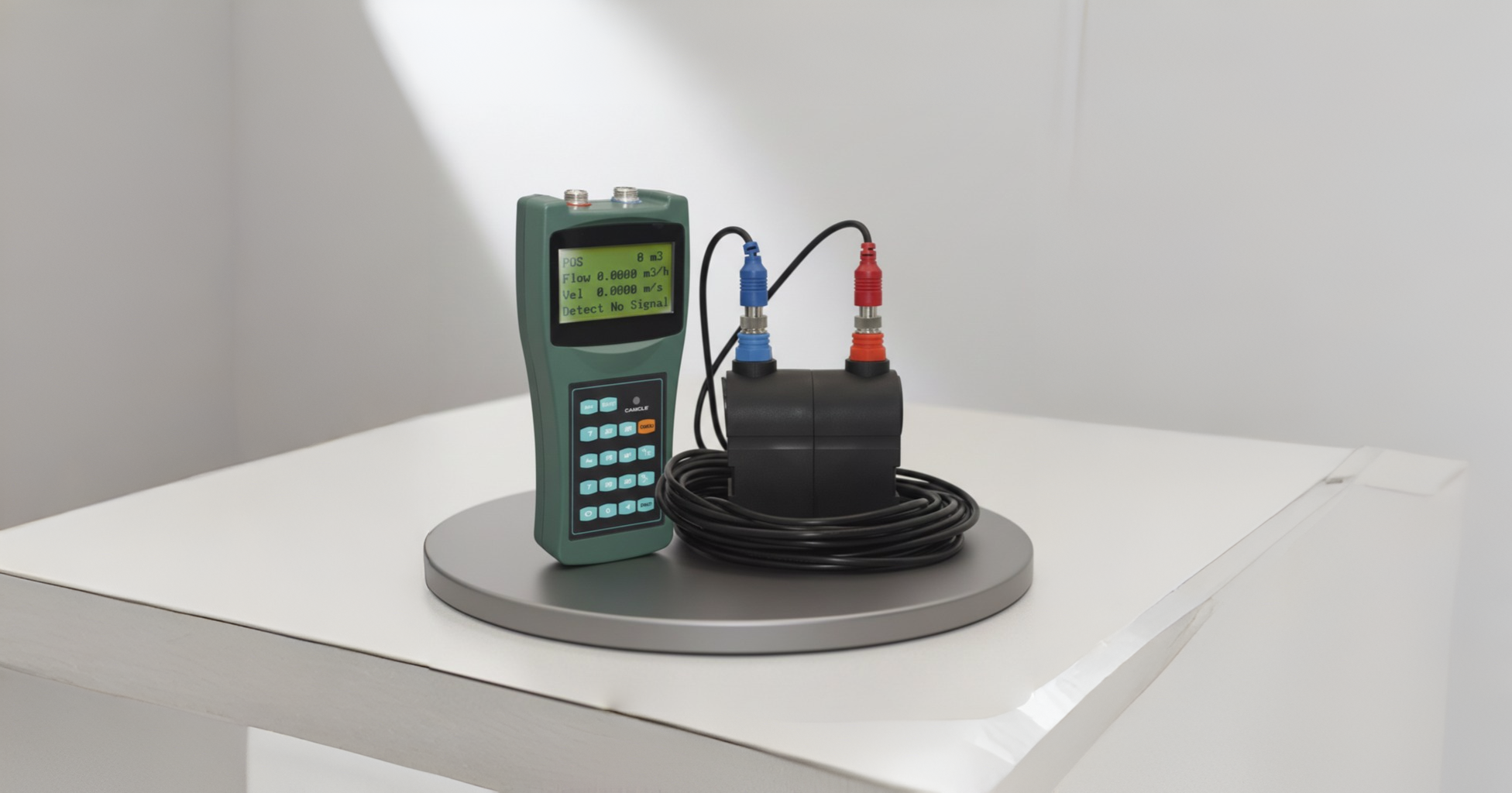

Handheld Ultrasonic Flow Meter
The ultrasonic flow meter, can be used for nearly any liquid from water, sewer water, petrol chemicals, metallurgy, electric power plant coolant flow,irrigation, city water,energy monitoring, the meter can indicate flow velocity, flow rate, total flow for nearly any fluid.
Features
- Accuracy better than 1%
- Measurement range from DN15~DN6000mm
- Built-in high-capacity Ni-MH rechargeable batteries will last more than 10 hours(Fully charged).
- Non invasion measurement, Can achieve measurement with clamp on sensors Data Storage,32K BIT built-in data storage, can store two thousand rows of data LCD display can display the instant flow, total flow, flow velocity and working condition
Application
- Water supply
- Supply Heating
- Building Energy Conservation
- Power Plant
- Petroleum & Chemical

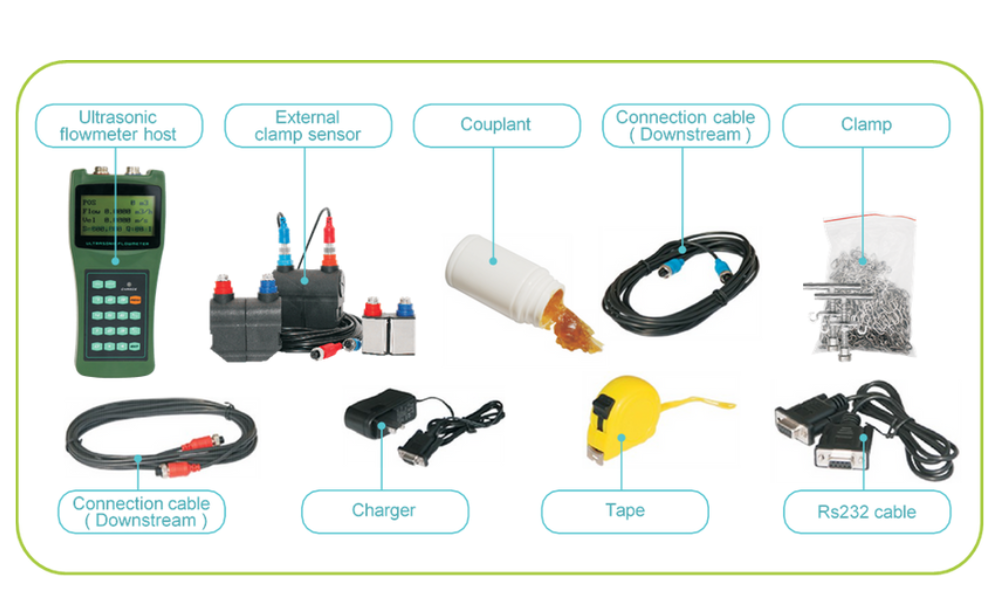

Handheld Ultrasonic Flow Meter Components
Specifications
| Type | Performance Parameter | Value |
|---|---|---|
| Transmitter | Principle | Ultrasonic transit-time principle, IEEE754 floating-point arithmetic |
| Accuracy | Flow: Better than ±1% | |
| Display | LCD display with multiple language support | |
| Output | OCT pulse output (6–1000ms, default 200ms) | |
| Data Interface | RS232 interface, PC upgrade support | |
| Pipeline | Material | Steel, SS, Cast Iron, PVC, Copper, FRP |
| Diameter | 15–6000 mm | |
| Installation | Upstream 10D, Downstream 5D, 30D from pump | |
| Medium | Fluid | Water, oil, alcohol, chemicals & compatible liquids |
| Temperature | -30°C to 160°C | |
| Turbidity | ≤10000 ppm, low bubbles | |
| Velocity | 0 ~ ±10 m/s | |
| Environment | Temperature | Transmitter: -20~60°C | Sensor: -30~160°C |
| Humidity | ≤85% RH, IP67 protection | |
| Power | Ni-MH battery (12 hrs backup) + AC 100–240V support | |
| Consumption | 1.5W | |
| Material | Flame retardant ABS | |
| Weight | ~514g | |
