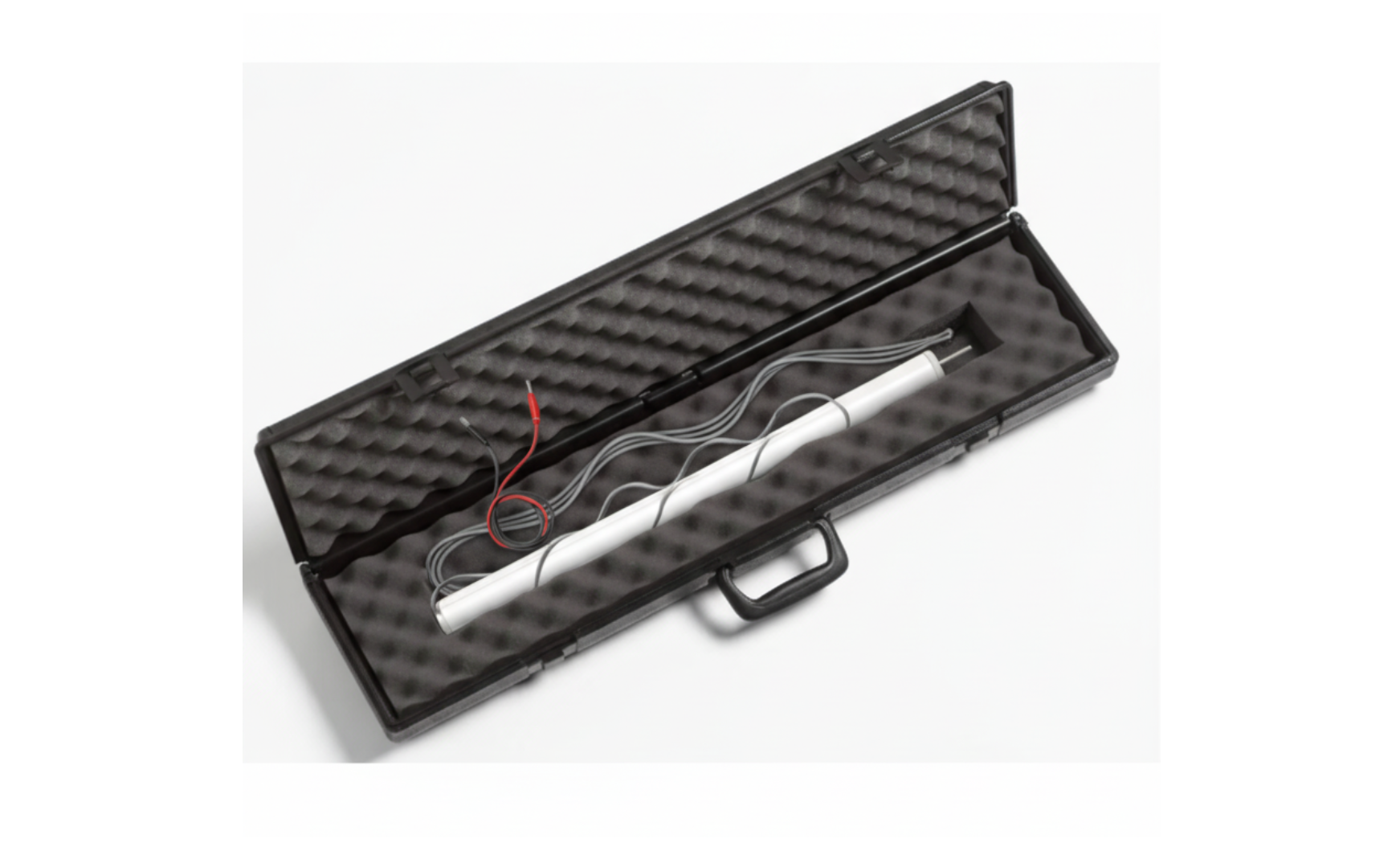

High Voltage Probe
The Reckonix RX-HVP40-AC/DC is a high-voltage measurement probe designed for precision metrology and laboratory calibration. It acts as a high-impedance voltage divider, scaling down dangerous high voltages to a safe range that can be measured by standard instruments like digital multimeters or oscilloscopes.
Product Specifications
- Make: Reckonix Model: RX-HVP40-AC/DC
- Range: 0- 40 kV AC & DC
- Attenuation Ratio: 1kV:100mV
- Input Impedance: > 200 MĪ©
Accuracy
- DC: 1% up to 20 kV & above 20 kV add 0.08%
- AC KV: 1.5% up to 20 kV & above 20 kV add 0.12%
Applications
This probe is typically used in environments where voltages can be life-threatening. Common applications include:
- Industrial Testing : Testing switching power supplies, motor controllers, and power distribution systems.
- Safety Compliance: Performing dielectric strength or "hipot" testing to ensure electrical products do not pose a shock hazard to users.
- Research and Diagnostics : General high-voltage circuit diagnostics, power supply verification, and decay testing.
- Electric Vehicles (EVs): Validation of EV battery systems, inverters, and charging infrastructure.
