Overview

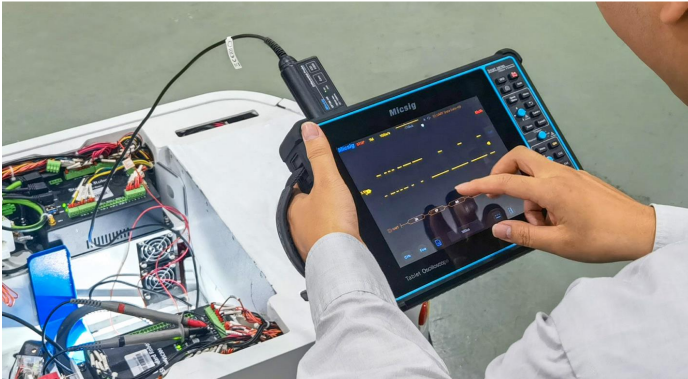

Micsig Tablet Oscilloscope STO series STO1000 adopts the newest integrated touch screen technology and newly upgraded hardware and software system, it features 4 analog channels, available with max. 200MHz bandwidth, max. 1G Sa/s sampling rate and 70Mpts of memory depth, waveform capture rate up to 130,000 wfms/s. With a large 8-inch, 800x600 industrial capacitive touch screen, the STO series can be operated in 3 modes: Full-touch, Physical button panel, and the mixture of both. Equipped with highly sensitive digital trigger system, it supports serial bus triggering and decoding. Combined with Micsig's unique touch algorithm patented technology, the STO series presents unparalleled operating experience to users.
Product Features
- Robust hardware design, intuitive Android operation system
- 32G internal storage to save large data / videos / screenshots
- Excellent connectivity: Wi-Fi, HDMI, USB 3.0/2.0 Host, USB Type-C
- Standard protocol decoding: UART, CAN, LIN, SPI, I2C
- 8" capacitive integrated screen brings premium touch experience
- Innovative PC & STOphone App remote control
- Up to 5H battery life & compact size, perfect for field work
- Support Wi-Fi, USB, computer control and SCPI
- Power-off switch lock, safe to travel and store
Key Specifications
| Model | STO1004 | STO2002 |
|---|---|---|
| Analog Channels | 4 | 2 |
| Bandwidth | 100MHz | 200MHz |
| Rise time | ≤3.5ns | ≤1.75ns |
| Sampling Rate (Max.) | 1GSa/S | |
| Memory Depth | 70Mpts | |
| Waveform Capture Rate (Max.) | 130,000 wfms/s | |
| Bandwidth Filter | 20MHz, High Pass, Low Pass (to 30KHz) | |
| Interfaces | Wi-Fi, USB 3.0/2.0 Host, USB-C, Grounding, HDMI, Trigger out | |
| Display | Industrial 8" TFT-LCD (800*600), 14*10 divisions | |
| Dimension / Net Weight | 265*192*50mm / 1.9kg (with battery) | |
| Battery | 7.4V, 7500mAh, Li-ion battery | |
