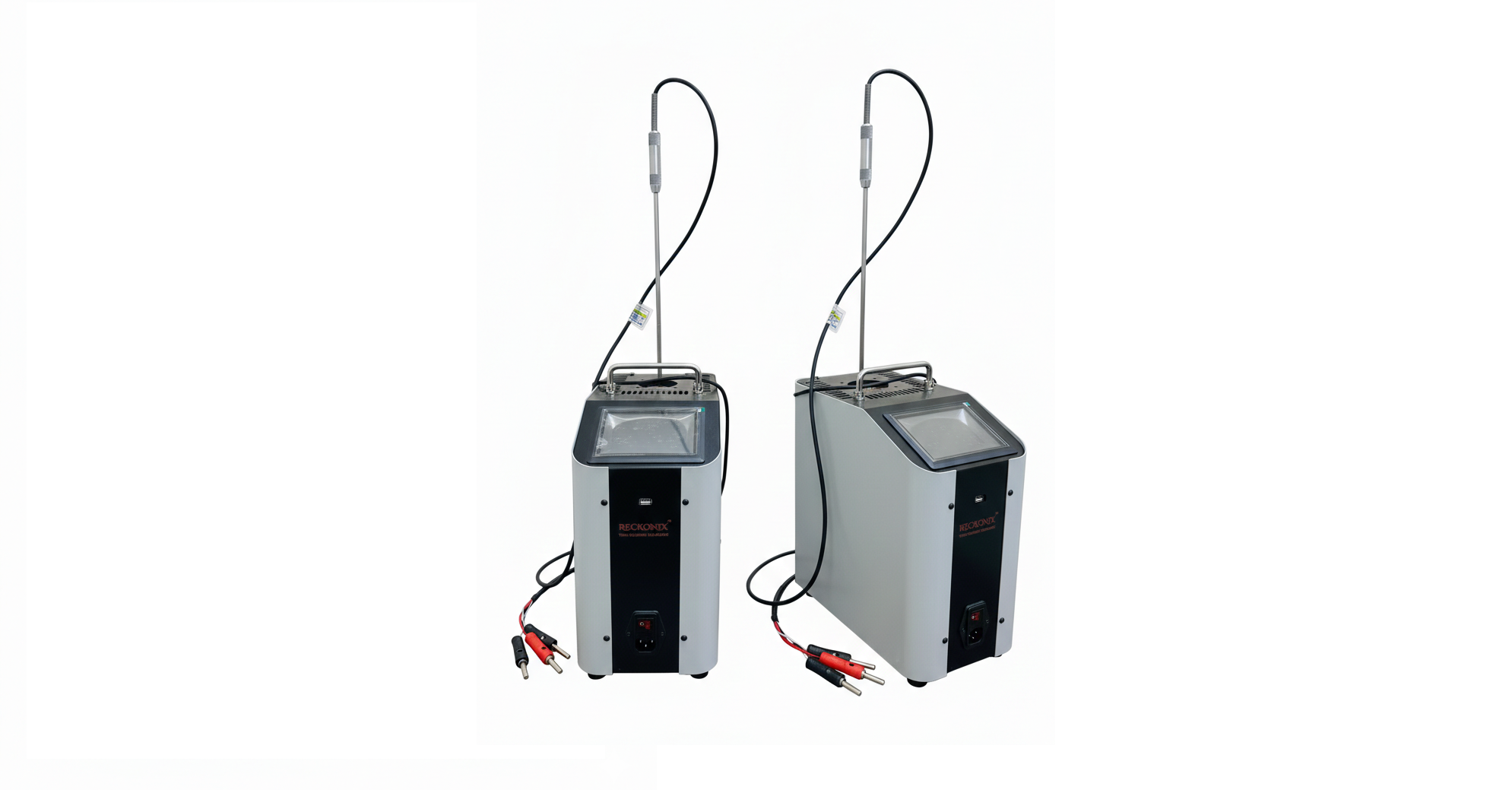

Dry Block Temperature Calibrator
This product is easy to carry, easy to use, with fast and reliable temperature accuracy, widely used in machinery, chemical industry, food, NABL Calibration Lab, pharmaceuticals and other industries. The problems of slow heating and slow constant temperature commonly exist in the existing dry calibration furnaces in companies, which leads to a delay for users to calibrate each time.
The latest generation of dry shaft furnace in the DB series adopts the most advanced heating principle design in the industry. It has the characteristics of fast heating, fast constant temperature and fast cooling, which greatly improves the existing calibration efficiency. Through reliable high precision temperature control circuit and high precision sensor, the accuracy is higher than that of other domestic manufacturers, and the technology meets international standards. The touchscreen operation, which is another breakthrough technology, is simple and fast to use.
Key Features
- Various types of insertion tubes can meet the test and calibration of sensors of different sizes and quantities. It can also be customised according to the special needs of users
- Excellent horizontal and vertical temperature fields
- Industry leading deep insertions degrees
- 5.7-inch TFT colour LCD display, full touch operation, using intuitive and eye- catching display
- Multi-language interface
- Quick cooling, convenient setting, good stability of temperature control
- The soaking block can be replaced
- Protective functions such as short circuit with load, load circuit breaking, sensor protection, etc.
- Small sized, light-weight, easy to carry
- Power Supply 220VAC±10%，45~60Hz
- Max Power
Low Temp：300W，
Medium Temp：1200W，
High Temp：3000W
General Specification
| Parameter | Specification |
|---|---|
| Mass |
Net: Low Temp: 11 kg, Medium Temp: 11 kg, High
Temp: 8 kg Gross: Low Temp: 18.5 kg, Medium Temp: 18.5 kg, High Temp: 16 kg |
| Dimension |
Low Temp: 310 × 190 × 340 mm Medium Temp / High Temp: 250 × 150 × 310 mm |
| Operating | 0 ~ 50 °C, relative humidity < 95% (no condensation) |
Technical Specifications
| Specification | Low Temperature RX-DDL 150A | RX-DDL 150B |
Medium Temperature RX-DBM 650 |
High Temperature RX-DBH1200A | RX-DBH1200B |
||
|---|---|---|---|---|---|
| Temperature Range | -20°C ~ 150°C / -30°C ~ 150°C | 50°C ~ 650°C | 300°C ~ 1200°C / 100°C ~ 1200°C | ||
| Heating / Cooling Speed |
25°C~50°C: 6min 50°C~100°C: 15min 100°C~150°C: 20mins 25°C~0°C: 15mins -20°C~30°C: 22mins |
50°C~300°C: 7mins 50°C~650°C: 30mins |
25°C~100°C: 10mins 100°C~600°C: 15mins 600°C~800°C: 20mins 800°C~1200°C: 30mins |
||
| Display Accuracy | ±0.1°C |
≤400°C: ±0.35°C 400-650°C: ±0.5°C |
±1.2°C | ||
| Inserted Depth | 165 mm | 160 mm | 150 mm | 135 mm | |
| Diameter of Heating Block | 36 mm | 32 mm | 32 mm | 39 mm | |
| Temperature Stability | ±0.02°C | ±0.05°C | ±0.2°C | ||
| Horizontal Temp Field | ±0.05°C | ±0.05°C | ±0.25°C | ||
| Hole Size | Ø6 / Ø8 / Ø10 / Ø12 mm | Ø8 / Ø10 / Ø12 mm or Ø6 / Ø8 / Ø8 mm | Ø6 / Ø8 / Ø10 / Ø12 mm | ||
| Vertical / Horizontal Field | Less than 1°C within 30 mm from bottom of heating block | Less than 1°C within 10 mm from bottom of heating block | |||
| Temp Unit | °C or °F | ||||
| Temp Control Precision | 0.10% | ||||
| Resolution Rate | 0.01°C or 0.001°C (optional) | ||||
| Optional Function | USB Device Communication Interface (USB port equipped for DBC-1200B, optional for other models) | ||||
