Overview

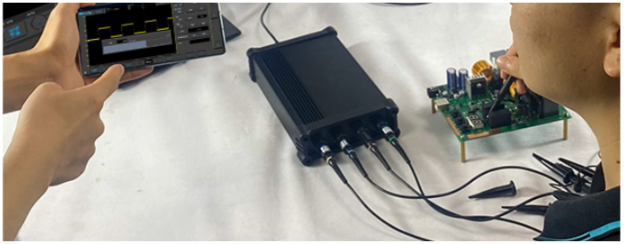

VTO2004 is a portable split-type oscilloscope with a compact design and built-in battery. It features 200MHz bandwidth, 4 channels, 1GSa/s sampling rate, and up to 50Mpts memory depth. It can be connected to Android devices, such as tablets, smartphones, and PC computers (Android OS). With a user-friendly UI design and a wide range of measurement options, it provides a new oscilloscope operation experience.
Product Features
- Friendly UI, easy to use
- Small size, light weight, perfect for field test
- 7500mAh Li-ion battery for day-long use
- Deep memory depth, capture more signal details
- Support High/Low bandwidth filtering
- 31 types of automated measurements
Key specifications
| Model | VTO2004 |
|---|---|
| Bandwidth | 200MHz |
| Analog channels | 4 |
| Rise time | ≤ 1.8ns |
| Max. sampling rate | 1GSa/s |
| Memory depth | 50Mpts |
| DC gain accuracy | ≤ 2% |
| Input impedance | 1MΩ±1% || 14pF |
| Interface | USB Type-C, DC power |
| Battery (optional) | 7.4V, 7500mAh |
| Size | 140*215*32mm |
| Net weight | 640g |
