Overview

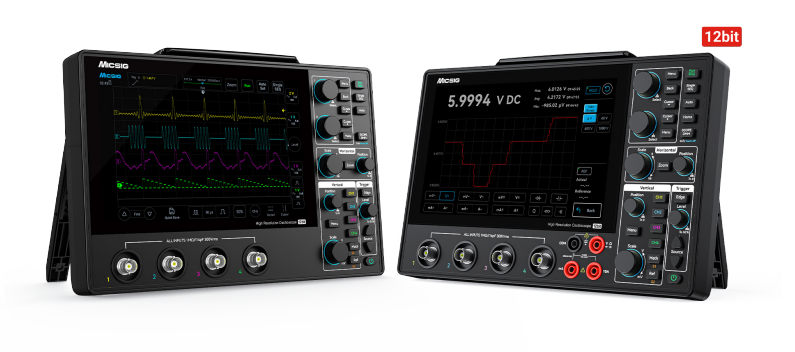

Micsig MH014 series is an ultra-portable professional-grade high-resolution oscilloscope, equipped with a 12-bit high-precision ADC, featuring a bandwidth of up to 200MHz, 4 analog channels, a real-time sampling rate of 1GSa/s, and a storage depth of 110Mpts. These high-performance parameters ensure that every measurement is accurate and provides a solid foundation for in-depth signal analysis. With a body thickness of only 3.1 cm, it can be easily placed in a backpack for efficient testing anytime, anywhere. It is equipped with an 8-inch high-definition anti-glare touch screen with a resolution of up to 1280*800, offering a delicate and clear picture and responsive touch, bringing users an ultimate operating experience.
Product Features
- 12-bit vertical resolution
- Optional 100MHz, 200MHz bandwidth
- DC gain accuracy ≤ 1%
- Simultaneous data saving on multi-channel
- Segmented storage function
- Advanced math and FFT function
- Only 3.1cm thickness, small and compact
- Supports power lock for safer carrying
- Supports 6-digit hardware frequency counter
- Integrated 4½-digit multimeter function (Optional)
- 8" TFT LCD capacitive touch screen, 1280*800 pixels
- Large-capacity battery 16000mAh
- Support charging with power bank
- Mobile APP, PC remote control, SCPI commands
- 32G internal storage to save big data
- Standard decodes: RS-232/422/485/UART, CAN, CAN FD, LIN, SPI, I²C, ARINC-429, MIL-STD-1553B
- Built-in electronic tools, electronic calculator, WPS office, ES file explorer, and other apps
Key specifications
| Model | MH014-100 | MH014-200 | MH014-100N | MH014-200N |
|---|---|---|---|---|
| Bandwidth | 100MHz | 200MHz | 100MHz | 200MHz |
| Rise Time | ≤ 3.5ns | ≤ 1.75ns | ≤ 3.5ns | ≤ 1.75ns |
| Analog channels | 4 | |||
| Sampling rate | 1GSa/s | |||
| Memory Depth | 110Mpts | |||
| Maximum waveform capture rate | 50,000 wfms/s | |||
| Vertical Resolution | 12bit | |||
| Interfaces | USB 3.0 Host, USB Type-C, LAN, HDMI, Trigger out | |||
| Display | 8" TFT LCD capacitive touch screen, 1280*800 pixels | |||
| Battery (optional) | 3.7 V, 16000mAh Lithium-ion battery | |||
| Charging | Standard DC 12V adapter, supports Type-C charging | |||
| Multifunction Meter Accuracy | 4½ Digits | |||
| Dimension / Net Weight | 265*174*31mm (Width x Height x Thickness) / 1.73kg | 265*174*31mm (Width x Height x Thickness) / 1.685kg | ||
