Overview

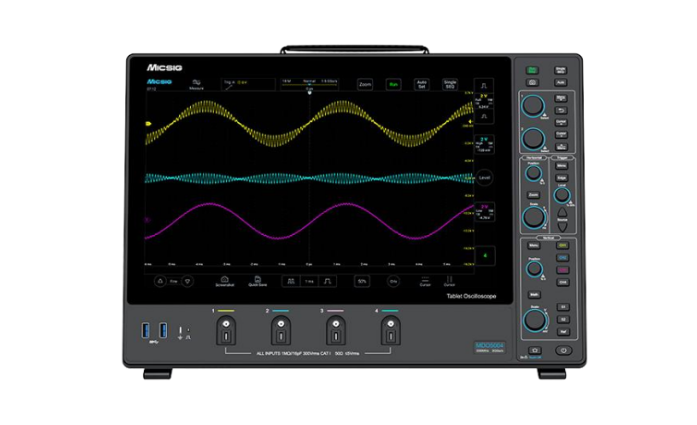

The MDO series digital storage oscilloscope is a bench-top oscilloscope that features 4 analog channels, max. 500MHz bandwidth, 3GSa/s real-time sampling rate, and 360Mpts memory depth. With 3.58cm ultra-thin design, it supports wall / arm mounting; 14-inch touchscreen with highest resolution of 1920 x 1200, brings ultimate clear waveform display.
Product Features
- Max. 500MHz bandwidth
- Up to 360Mpts memory depth
- Simultaneous data saving on multi-channel
- High / Low pass bandwidth filtering
- Noise floor < 90µVrms
- Standard segmented storage function
- Advanced math and FFT function
- 230,000 wfms/s waveform capture rate
- 14" anti-glare touch screen, 1920 x 1200 resolution
- Ultra-friendly UI, get to use in 5 minutes
- Mic-OPI™ probe interface, auto-match attenuation
- Mobile APP, PC remote control, SCPI commands
- 32G internal storage to save big data
- Standard decodes: RS-232/422/485/UART, CAN, CAN FD, LIN, SPI, I²C, ARINC-429, MIL-STD-1553B
Key Specifications
| Model | MDO5004 | MDO3504 | MDO2504 |
|---|---|---|---|
| Bandwidth | 500MHz | 350MHz | 250MHz |
| Rise time | ≤ 0.7ns | ≤ 1ns | ≤ 1.4ns |
| Analog channels | 4 | 4 | 4 |
| Sampling rate | 3GSa/s | 3GSa/s | 3GSa/s |
| Memory depth | 360Mpts | 360Mpts | 360Mpts |
| Waveform capture rate | 230,000 wfms/s | 230,000 wfms/s | 230,000 wfms/s |
| Vertical resolution | 8 bits | ||
| Noise | < 90µVrms | ||
| Bus decoding (std.) | RS-232/422/485/UART, CAN, CAN FD, LIN, SPI, I²C, ARINC-429, MIL-STD-1553B | ||
| Interfaces | USB 3.0 Host, USB type-C, LAN, HDMI, Trigger out | ||
| Display | 14" TFT LCD touch screen, 1920*1200 resolution | ||
| Trigger types | Edge, Pulse Width, Logic, Nth Edge, Runt, Slope, Time Out, Video, Serial | ||
