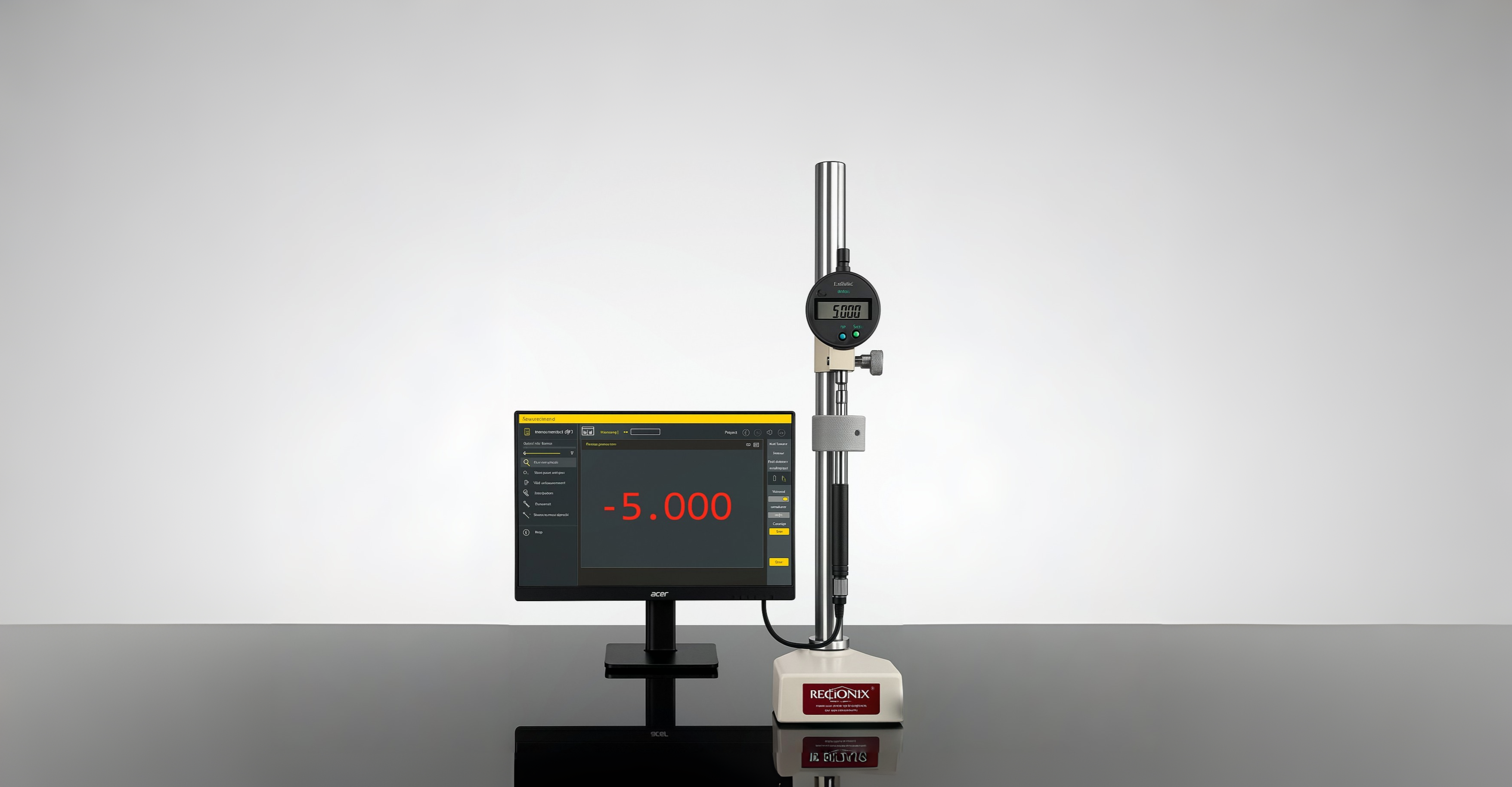

Dial Calibration Tester
DCT is a calibration tester having a high precision micrometer with the minimum scale of 1 μ m. It can be used to calibrate dial gauges as well as other displacement gauges. The stanchion is vertically adjustable according to the type of gauges and reading is done while. The working principle of the dial gauge is dependent on the movement of the spindle. It travels up and down. This movement is then converted to a rotating needle (pointer) scale reading.
The dial gauge can measure up to a reading of 0.01 or 0.001 mm. To ensure industry-leading repeatability and data integrity, the RECKONIX DCT is equipped with two options Sylvac Dial & Sylvac Probe.
Sylvac Digital Dial
Provides crystal-clear digital readings to eliminate parallax errors.
Features advanced functions like MIN/MAX/DELTA and integrated data output for seamless PC connectivity.
Sylvac Absolute Probe
Utilizes a high-accuracy inductive measuring system.
Ensures exceptional linearity and repeatability over the entire measuring range.
Features
- Specially designed for calibration of precision Dial as the Resolution of calibration tester is 0.1 μm
- Accessories for holding plunger type dial indicators, lever type dial indicators and bore gauges.
- Carbide Tipped measuring face Holding shaft provides holes of 8 mm & 3/8 inch Holding brackets accommodate bore gauges upto 23 mm ‘tube diameter.
- Calibration Certification from 3rd party NABL (ISO/IEC 17025) Accredited Laboratory.
Technical Specification
Sylvac Dial
- Measuring Range: Available in ranges of 12.5 mm, 25 mm, and up to 150 mm.
- Resolution: Selectable at 0.01 mm, 0.001 mm, or 0.0001 mm (0.1 μm) depending on the model.
- Accuracy (Max Error): Typically between 1.0 μm and 1.8 μm for high-precision models.
- Repeatability: 0.2 μm for high-end digital models.
- Functions: Includes MIN/MAX/DELTA, integrated data output (USB/RS232/Bluetooth), and programmable menus.
- Protection Rating: Standard models are IP51 or IP54; "Advanced" versions offer IP67 protection against water and oil.
Sylvac Probe
- Measuring Range: 12.7 mm (½ inch) is the standard for the P12D series.
- Resolution: * Standard: 0.1 μm.
- High Resolution: 0.01 μm.
- Accuracy (Max Error): * Standard: 1.0 μm.
- High Resolution: 0.6 μm.
- Repeatability: * Standard: 0.2 μm.
- High Resolution: 0.08 μm.
