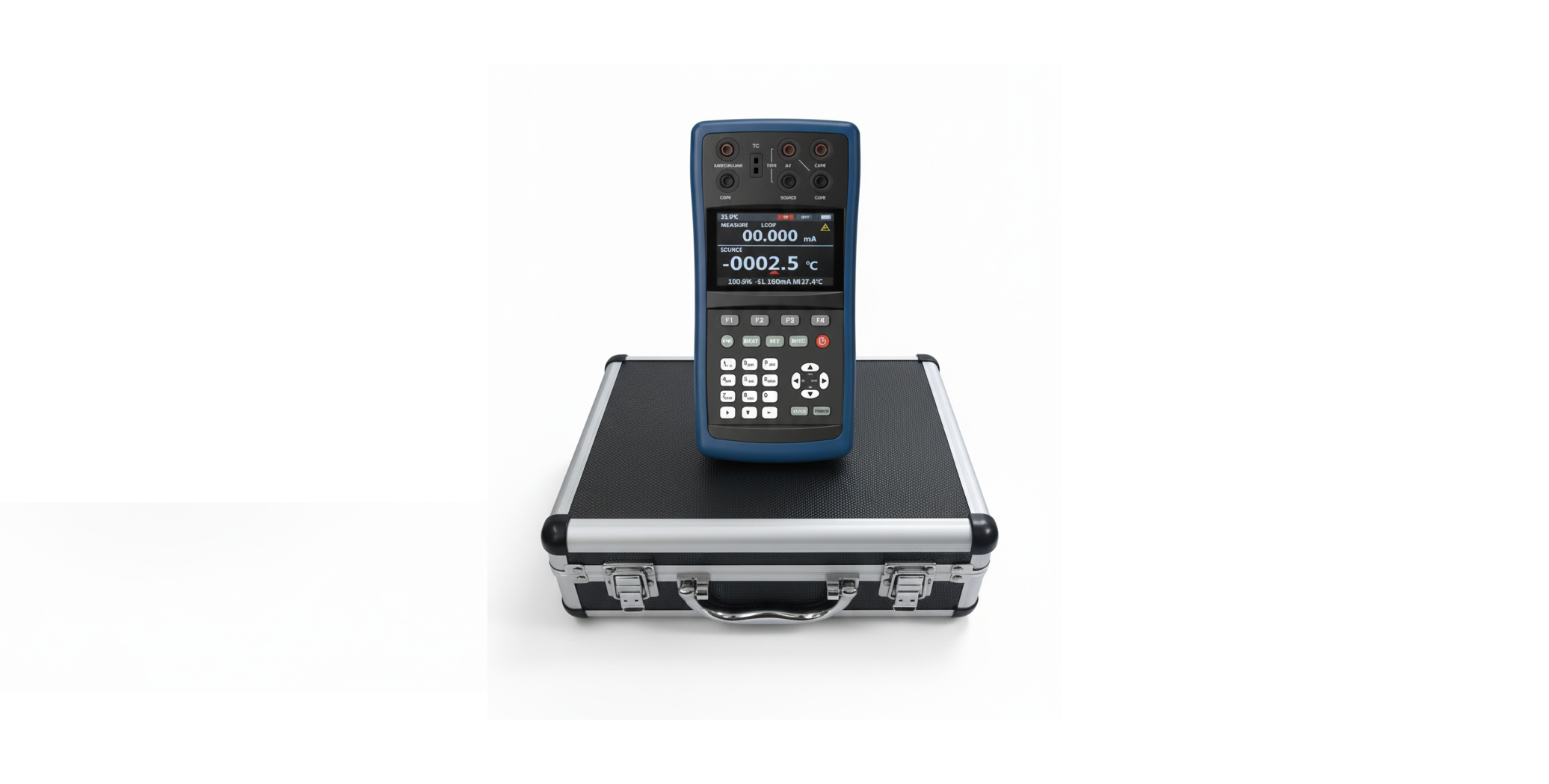

RECKONIX-625 high-precision multi-function process calibrator is a high-precision, hand- held process signal measurement/output instrument, which can simultaneously measure and output voltage, current, resistance, thermocouple, thermal resistance, frequency, pulse, switch value, etc. Industrial process signal; built-in HART function, can completely replace the HART Communicator. The product can replace the measurement and calibration instruments such as current signal source, voltage signal source, resistance box, electronic potentiometer, frequency meter, HART hand communicator, etc. It is mainly used in industrial field signal calibration and fault diagnosis; it is also suitable for signal measurement and calibration in chemical industry, military industry and various research institutes and laboratories. This product is a powerful, standard-grade industrial process detection instrument for field and laboratory use.

Features

  • Measurement/output: voltage, current, resistance, frequency, pulse, switch value, among which current output supports active and passive
  • Simulate thermal resistance and thermocouple in the form of temperature
  • Can simulate two-wire transmitter Resistance measurement can be selected in two, three and four-wire ways Accuracy is 0.01%
  • Two mutually isolated channels, support synchronous measurement and output Can provide manual step, automatic step, automatic step and manual step function
  • Using 3.5-inch TFT LCD screen with a resolution of 480*320 The measurement and output data can be displayed at the same time, and the measurement or output data can also be displayed separately 5000mAh lithium battery power supply With automatic power off function, time can be set, suitable for on-site use
  • Provide DC24V loop power supply for on-site debugging
  • The thermocouple measurement and output provide built-in, external and manual cold junction temperature compensation methods, of which the external reference terminal adopts A- grade Pt100 platinum resistance
  • Thermocouple Type：R,S,K,E,J,T,N,B,L,U,XK,WRE325,WRE526
  • Type of thermal resistance ： PT100-385,PT100-392,PT100-JIS,PT200- 385,PT500- 385,PT1000- 385, Cu10,Cu50 ， Cu100,Nil20 ， BA1,BA2,PT10； HART function (only ET1625H and ET1615H support this function)
  • It can completely replace the HART hand- held communicator, set or calibrate the range of the smart transmitter, and force the output current of the smart transmitter to be at a fixed value (such as 20mA, 12mA) , 4mA), set the linear or square root function, can perform HART reset on the pressure sensor of the transmitter, etc.

Features

Model RX625 RX625H RX615 RX615H RX610 Notes
Voltage Output Range 100mV Resolution : 0.1µV Maximum load current ≤ 2.5mA
Precision : 0.008%RD + 0.003%FS
1V Resolution : 1µV
Precision : 0.008%RD + 0.001%FS
10V Resolution : 10µV
Precision : 0.008%RD + 0.001%FS
Current Output
(active & passive)		 30mA Resolution 0.1µA Active output maximum load voltage ≥ 20V
Precision 0.008%RD + 0.003%FS
Frequency Output Range 100Hz Resolution 0.001Hz Maximum load current ≤ 2.5mA
100Hz Precision 0.01%FS
1kHz Resolution 0.01Hz
1kHz Precision 0.01%FS
10kHz Resolution 10Hz
10kHz Precision 0.01%FS
Resistive Output Range 50Ω Resolution 0.1mΩ Excitation current 0.4–4mA
50Ω Precision 0.008%RD + 30mΩ
500Ω Resolution 1mΩ Excitation current 0.1–2mA
500Ω Precision 0.008%RD + 30mΩ
5000Ω Resolution 10mΩ Excitation current 0.04–0.4mA
5000Ω Precision 0.008%RD + 100mΩ
Pulse Output Range 10Hz–10000Hz 1 cyc ±2 digit Maximum load current ≤ 2.5mA
Switch Output Range 100Hz Resolution 0.01Hz
100Hz Precision ±2 digit
1kHz Resolution 1Hz
1kHz Precision ±2 digit
10kHz Resolution 0.1kHz
10kHz Precision ±2 digit
100kHz Resolution 1kHz
100kHz Precision ±2 digit
24V Output 24V ±10%FS Loop output
MEASUREMENT
Voltage Measurement 200mV Resolution 0.1µV
2V Resolution 1µV
20V Resolution 10µV
200V Resolution 0.1mV
Current Measurement 20mA Resolution 0.1µA
200mA Resolution 1µA
Frequency Measurement 100Hz Resolution 0.001Hz Maximum load current ≤ 2.5mA
1kHz Resolution 0.01Hz
10kHz Resolution 10Hz
Resistance Measurement 50Ω Resolution 0.1mΩ Excitation current 1mA
500Ω Resolution 1mΩ
5000Ω Resolution 10mΩ Excitation current 0.1mA

THERMAL RESISTANCE TABLE

Graduation number temperature range Resolution Accuracy Note
PT10 -200-850°C 0.01°C 0.2°C
PT100-385 -200-850°C 0.01°C 0.1°C
PT100-392 -200-850°C 0.01°C 0.1°C
PT100-JIS -200-850°C 0.01°C 0.1°C
PT200-385 -200-630°C 0.01°C 0.1°C Four Wire
Measurement
PT500-385 -200-630°C 0.01°C 0.2°C
PT1000-385 -200-650°C 0.01°C 0.1°C
Cu10 -100-260°C 0.01°C 0.5°C
Cu50 -50-150°C 0.01°C 0.2°C
Cu100 -50-150°C 0.01°C 0.2°C
BA1 -200-650°C 0.01°C 0.4°C
BA2 -200-650°C 0.01°C 0.25°C
Ni20 -80-260°C 0.01°C 0.3°C

THERMOCOUPLE TABLE

Graduation Number Temperature Range Resolution Accuracy Note
K -200-0°C 0.1°C 0.4°C
0-1372°C 0.1°C 0.3°C
R -50-0°C 0.1°C 0.9°C
0-1768°C 0.1°C 0.7°C
S -50-0°C 0.1°C 0.9°C
0-1768°C 0.1°C 0.6°C
E -50-0°C 0.1°C 0.5°C
0-1000°C 0.1°C 0.4°C
J -200-0°C 0.1°C 0.3°C
0-1200°C 0.1°C 0.2°C
T -100-0°C 0.1°C 0.6°C not include cold junction compensation accuracy
0-400°C 0.1°C 0.3°C
L -200-900°C 0.1°C 0.2°C
N -200-0°C 0.1°C 0.7°C
0-1300°C 0.1°C 0.5°C
B 600-1820°C 0.1°C 0.7°C
U -200-0°C 0.1°C 0.6°C
0-400°C 0.1°C 0.4°C
XK -200-800°C 0.1°C 0.5°C
WRE325 0-1500°C 0.1°C 0.6°C
WRE526 0-1500°C 0.1°C 0.6°C

NOTE: THE BUILT-IN COLD JUNCTION COMPENSATION ACCURACY IS 0.5°C
-100~0°C ±0.5°C
0~400°C ±0.2°C

NOTE: THE TEMPERATURE OF THE REFERENCE END IS 0°C; THE ERROR OF THE INTERNAL TEMPERATURE PROBE: ±0.2°C, FOLLOWING THE ITS-90 INTERNATIONAL TEMPERATURE SCALE.

GENERAL TECHNICAL SPECIFICATIONS:

  • USE ENVIRONMENT: TEMPERATURE 20°C±2°C, RELATIVE HUMIDITY ≤80%RH
  • DIMENSIONS OF THE CALIBRATION TABLE: 1880MM (LENGTH) × 758MM (WIDTH) × 1460MM (HEIGHT)
  • POWER SUPPLY: AC220V±10%, 50HZ±2HZ
  • POWER CONSUMPTION: <500W

Temperature
