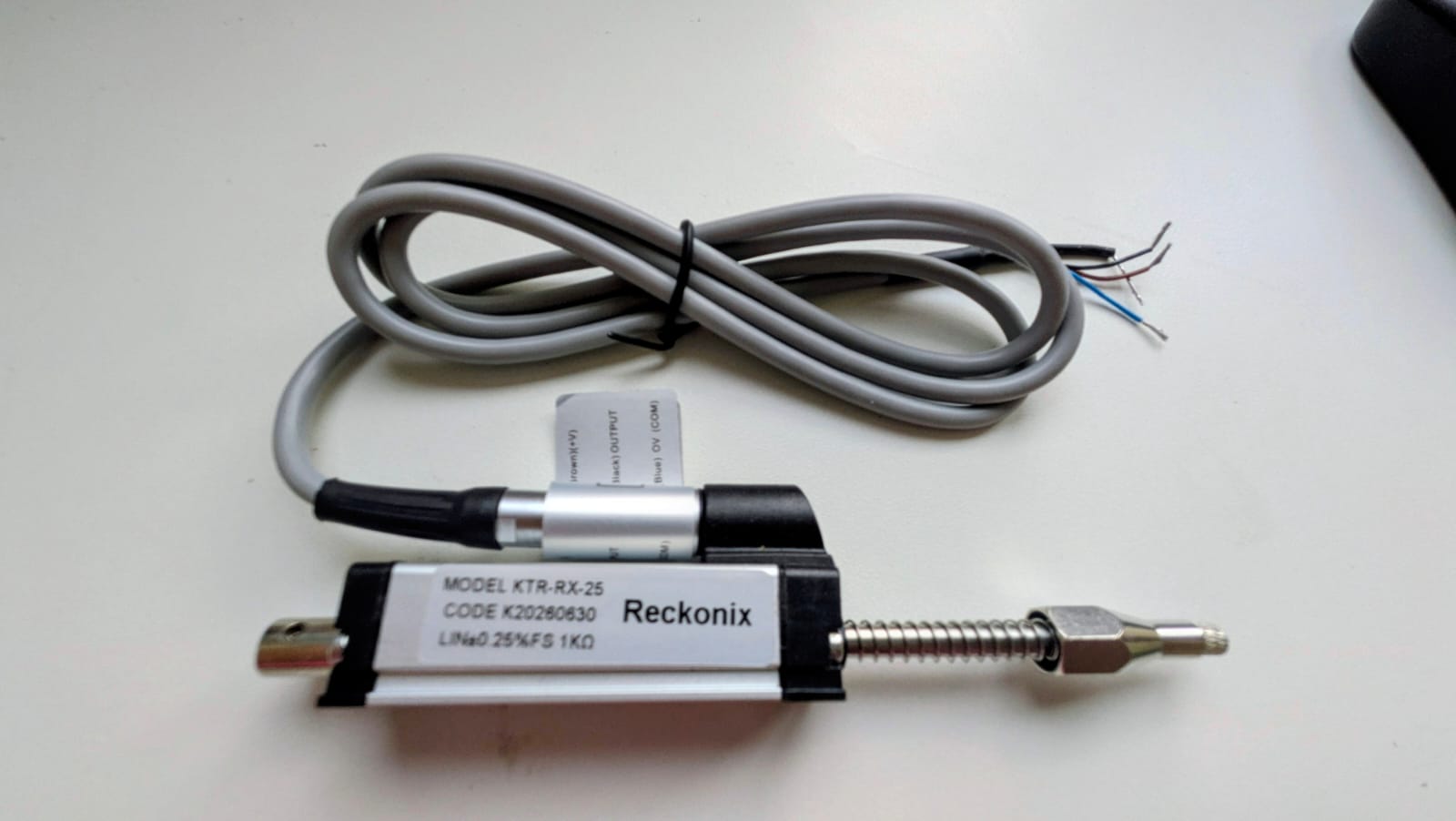

- Feature:
- Volume smaller
- Usage life is longer, times could reach thirty million
- Sensor with back spring
- It is suitable for the equipment without installation and alignment of the push rod
- Protection grade is Ip65 (Note: usually written as IP65)
- Din standard contact point (Note: usually written as DIN standard)
- Double bearing typebar
- Don't affect with an external impact and vibration
- Cable type connection
- Could equip with voltage and current (2line, 3line) module
TECHNICAL SPECIFICATIONS
| Parameter | Value / Specification |
|---|---|
| Measuring stroke | 5 to 100mm |
| Linearity | ±0.05% |
| Repeatability | < 0.01mm |
| Resolution | Infinite |
| Resistance | 2KΩ or 5KΩ |
| Resistance tolerance | ±20% |
| Load resistance | Minimum 100KΩ |
| Allowed power supply voltage | 28V |
| Electrical connections | Direct cable output (Standard) |
| Displacement speed | < 3m/s |
| Mechanical life | > 30 *10^6 |
| Shell size | 18mm x 18mm |
| Shell material | Anodized aluminum |
| Rod material | Stainless steel |
| Rod diameter | φ6mm |
| Mechanical fixation | Adjustable bracket |
| IP degree | IP 65 |
| Operating temperature | -40°C to +80°C |
Working range / mm :| 5 | 10 | 15 | 25 | 50 | 75 | 100 |
|Electrical stroke / mm :| 5 | 10 | 15.5 | 25.5 | 50.5 | 75.5 | 101 |
Standard resistance / kΩ :| 2 | 2 | 5 | 5 | 5 | 5 | 5 |
Independent linearity / ±% :| 1 | 1 | 0.5 | 0.5 | 0.25 | 0.15 | 0.1 |
Shell length (dimension A)/ ± 2mm: | 43.5 | 48.5 | 53.3 | 78 | 93 | 118 | 143 |
Mechanical stroke (size MT)/ ± 2mm: | 9 | 14 | 19 | 29.5 | 54.5 | 79.5 | 105 |
Weight (without accessories)/ g : | 56 | 59 | 60 | 63 | 125 | 140 | 160 |
