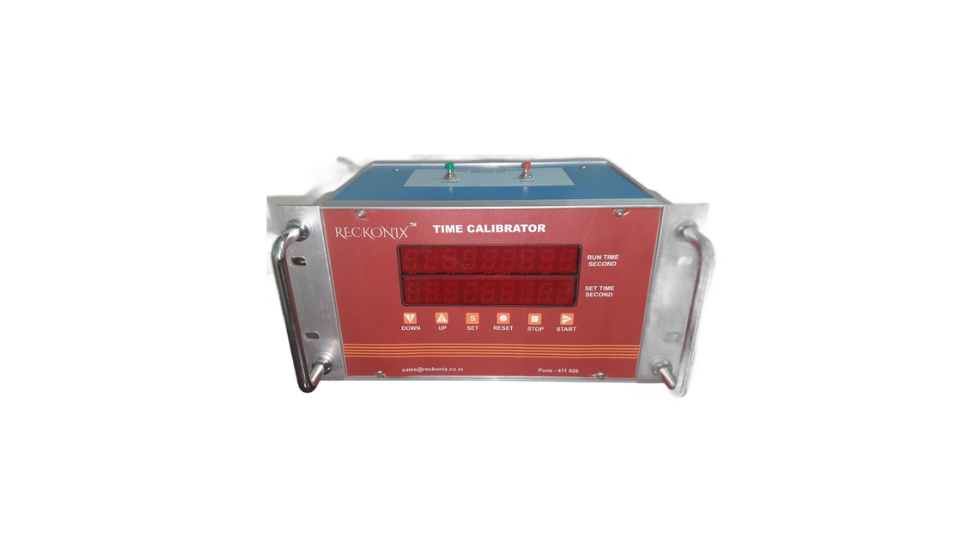

Digital Time Calibrator
This calibrator is used in calibration laboratories, R&D centers, and testing departments to ensure timing devices provide accurate and traceable measurements. It features high-quality switches for easy programming of timer values and a seven-segment LED display for clear reading.
We offer 999999.999 Sec. ranges from 000000.000 Sec to over 999999.999Sec. High quality switches allow easy Program of timer values.
3 binding posts are provided on rear side for connection of Timer under calibration. Binding posts offer simple and secure connections. We use special components making in Time calibrator. Careful use of this Time Calibrator will provide years of reliable service. This time Calibrator is suitable for use in calibration lab, R&D center, Testing department, for measure and calibrate the time.
TECHNICAL SPECIFICATION:
- Time Range: 000000.010 sec to 999999.999 sec
- Output: One set of Pole-NC-NO-contact
- Input: By tact switch and through potential-free contact
- Power: 230V AC
- Connection: Two sets of three binding posts or terminal strip
- Accuracy: 0.05% of reading ± 2 digits
- Operating Conditions
- Temperature: 25 to 35°C
- Humidity: < 80% RH
- Dimensions: 160 mm x 270 mm x 130 mm
- Weight: 900 grams approx.
Features
- Precise calibration digital and analog timer
- High-quality switches
- Easy programming of timer value
- Simple and secure connection
