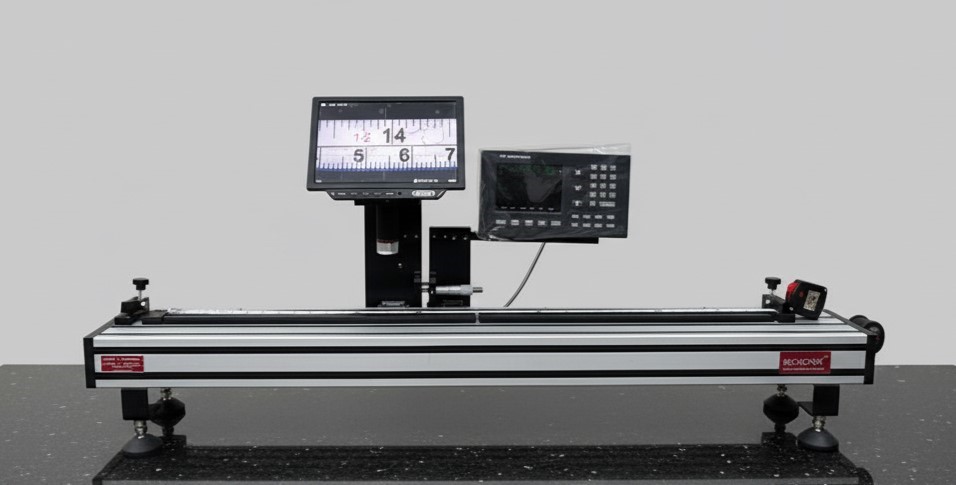

Tape & Scale Calibration System
Tape and Scale calibration system provide the ultimate flexibility to perform measurement rule, measuring scale and measuring tapes from 1mm to 1000mm. The Tape and Scale Calibration system is used to measure and calibrate different types of industrial measuring tapes, scales and rules.
The applications of these measuring instruments are very wide from civil, mechanical to textile industries. RECKONIX offers three models of tape & scale calibration system :
- Model 1 - With Display
- Model 2 - Without Display
- Model 3 - With Software
Model Selection Guide
| Feature | Model 1 With Display |
Model 2 Without Display |
Model 3 With Software |
|---|---|---|---|
| Digital Readout | Electronic Digital Readout (DRO) included | No external DRO (PC-based viewing) | Electronic Digital Readout (DRO) included |
| Imaging | Counter Zoom Lens with Cross Line | Counter Zoom Lens with Cross Line | Counter Zoom Lens with Cross Line |
| Processing | Standard Image Processing | Standard Image Processing | Advanced Image Processing Software |
| Best For | Standalone high-precision workshop use | Cost-effective PC-integrated setups | Comprehensive data logging and reporting |
Technical Specification
| Feature | Specification |
|---|---|
| Display Type | Digital screen with reference cross line |
| Measuring Range | 0 to 1000 mm |
| Resolution | 0.001 mm with linear glass scale for fine adjustment |
| Accuracy | 30 Micron |
| Weight | 30 kg |
| Power Supply | 230 VAC / 115 VAC 50 Hz |
| Camera Megapixel | 2MP high speed camera with 10x – 25x zoom |
| Dimension | 1500 x 250 x 500 mm |
Applications
- Measurement steel rule, measuring scale and measuring tapes.
- Comparison of digital image with 10x-30x Magnification.
- Variable loading system for different applications.
- Easy alignment system for Steel rules and tapes.
