Overview

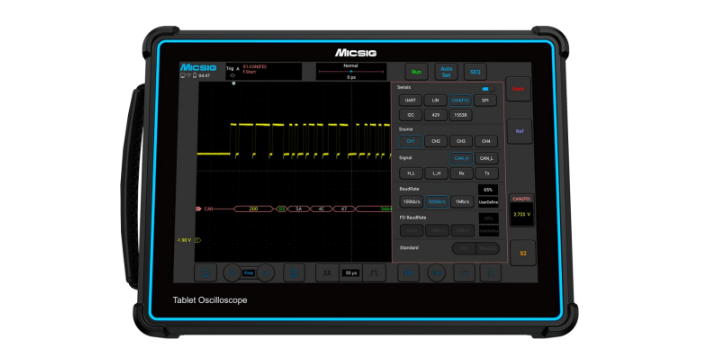

The TO series Tablet Oscilloscope features 2&4 analog channels, up to 300MHz bandwidth, 2GSa/s sampling rate and max. 220Mpts memory depth, running with Micsig latest SigtestUITM multitasking system, make sure long-time stable and smooth performance. 10.1-inch integrated full touch screen with 1280 x 800 high resolution, combined with Micsig's over 10 years of experience in touch control algorithms, the TO series brings touch experience to another level. The TO series Tablet Oscilloscope comes in a compact form factor, making it a go-to oscilloscope for electronic debug and test, integrates comprehensive measurement and mathematical functions, supports serial bus triggering and decoding, also equipped with hardware digital filtering modules and other functions. Powered by built-in battery, it helps engineers work where they work.
Key Specifications
| Model | TO3004 | TO2004 | TO2002 | TO1004 |
|---|---|---|---|---|
| Bandwidth | 300MHz | 200MHz | 200MHz | 100MHz |
| Analog channels | 4 | 4 | 2 | 4 |
| Rise time | ≤1.16ns | ≤1.75ns | ≤1.75ns | ≤3.5ns |
| Max. Sampling rate | 2GSa/s | 2GSa/s | 1GSa/s | 1GSa/s |
| Max. Memory depth | 220Mpts | 220Mpts | 110Mpts | 110Mpts |
| Waveform capture rate | 300,000 wfms/s | 300,000 wfms/s | 78,000 wfms/s | 78,000 wfms/s |
| Bus decoding | RS-232/422/485/UART, CAN, CAN FD, LIN, SPI, I²C | |||
| Input impedance | 1MΩ/50Ω | 1MΩ | ||
| Interfaces | Wi-Fi, USB 3.0/2.0 Host, USB Type-C, Grounding, HDMI, Trigger out | |||
| Vertical resolution | 8 bits | |||
| Storage | 32G | |||
| Display | 10.1 Inch LCD capacitive touch display, 1280*800 resolution, 11*10 grids | |||
| Size/Net weight | 265*192*50mm / 1.9kg (with battery) | |||
| Battery | 7.4V, 7500mAh Li-ion battery | |||
