Overview

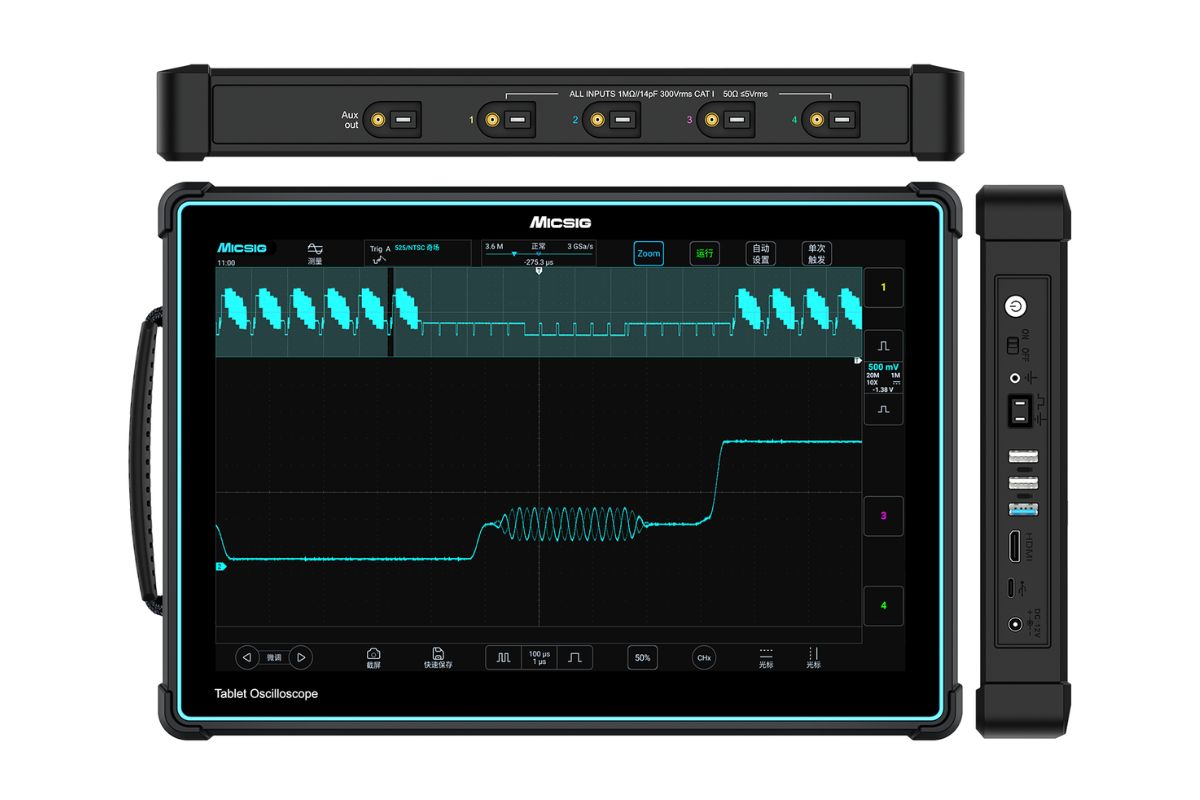

As Micsig GEN 5 tablet oscilloscope, the ETO series has up to 500MHz bandwidth, 4 analog channels, up to 3GSa/s sampling rate, and 360Mpts memory depth. Equipped with Micsig SigtestUI™ multi-tasking system, it comes with excellent hardware performance and professional oscilloscope functions. 14-inch ultra-large full touch screen, and built-in large-capacity battery, making it perfect tool whether in laboratory or in the field, bringing engineers excellent oscilloscope operation experience.
- max. 500MHz bandwidth
- Intuitive user interface
- Save multi-channel data simultaneously
- High pass, Low pass bandwidth filter
- Noise < 90µVrms
- Segmented storage function (10,000 events)
- Advanced math and FFT functions
- Up to 230,000wfms/s waveform capture rate
- 14" anti-glare full touch screen, 1920*1200 pixels
- Built-in large battery, easy for lab and field using
- Mic-OPI™ probe interface, auto probe compensation
- Support mobile, PC remote control and SCPI commands
- 32G internal storage to store big data
- Standard RS-232/422/485/UART, CAN, CAN FD, LIN, SPI, I²C, and ARINC-429, MIL-STD-1553B serial decode
Key Specifications
| Model | ETO5004 | ETO3504 |
|---|---|---|
| Bandwidth | 500MHz | 350MHz |
| Analog channels | 4CH | |
| Max. Sampling rate | 3GSa/s | |
| Max. Memory depth | 360Mpts | |
| Max. waveform capture rate | 230,000 wfms/s | |
| Noise | <90µVrms | |
| Trigger types | Edge, Pulse Width, Logic, Nth Edge, Runt, Slope, Time Out, Video, Serial | |
| Bus decoding | RS-232/422/485/UART, CAN, CAN FD, LIN, SPI, I²C, ARINC-429, MIL-STD-1553B serial decode | |
| Interfaces | USB 3.0/2.0 Host, USB type-C, Ground, HDMI, Trigger out | |
| Display | 14" integrated TFT LCD screen, 1920*1200 resolution | |
| Battery | 7.4V / 13500mAh Li-ion Battery | |
| Dimensions / Net weight | 353*245*56 mm / 3.6kg (with battery) | |
