Overview

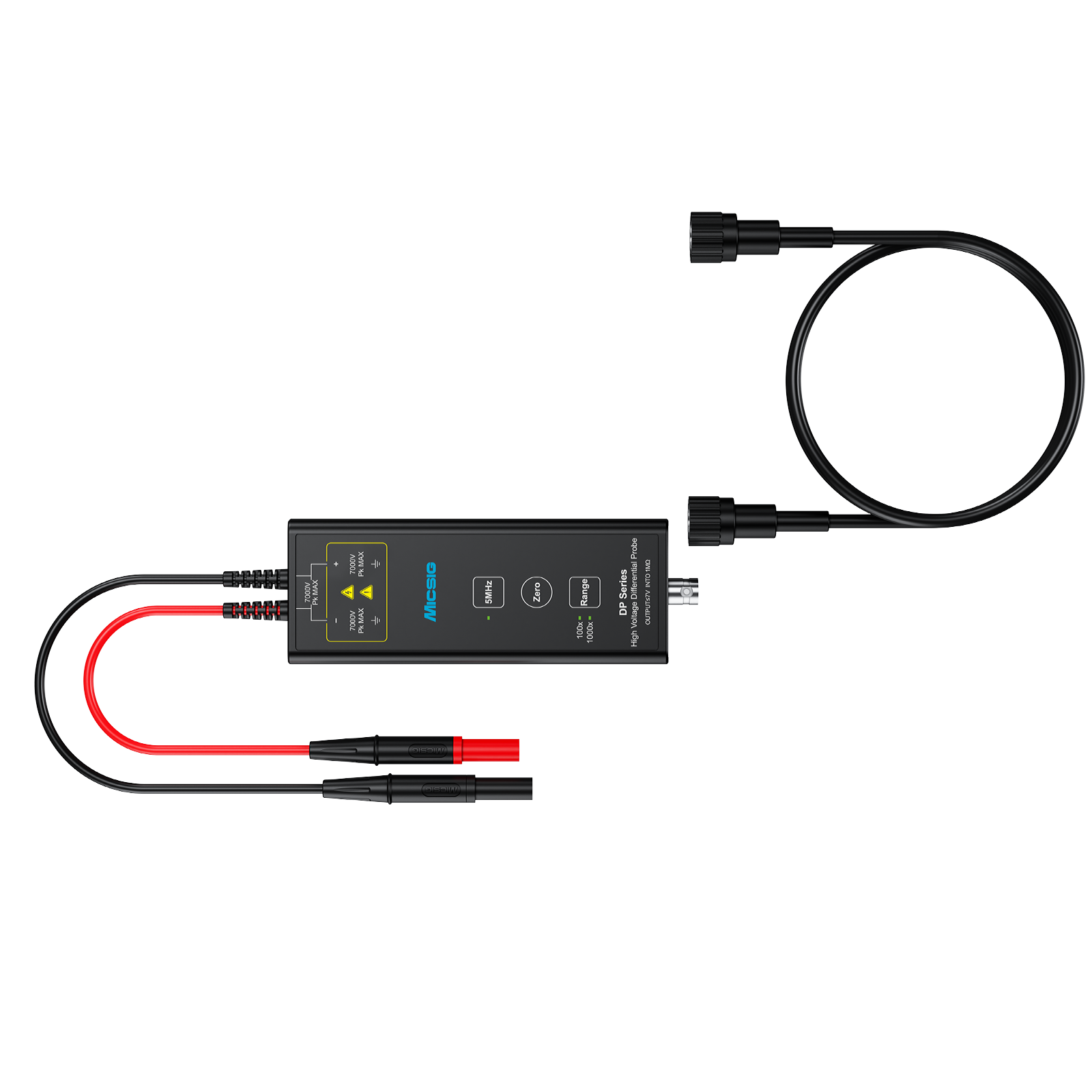

Micsig DP Series High-Voltage Differential Probe offers a bandwidth of 100-300 MHz and a maximum input voltage of 7000 Vpk. With a standard BNC interface, they are compatible with oscilloscopes of most brands. Features include one-button calibration, overload alarm, range power-off memory, dual voltage ranges, and a high- resistance, low-capacitance design to minimize loading. The probe delivers strong amplitude-frequency performance, and a high common-mode rejection ratio. Command-based programming enables automated testing. 5 MHz bandwidth-limit function helps suppress high-frequency noise, delivering clearer waveforms.
Key specifications
| Model | DP700 | DP1500 | DP3000 | DP7000 |
|---|---|---|---|---|
| Bandwidth | 100MHz | |||
| Max. input differential voltage (DC+AC PK) | 70V (20X) 700V (200X) |
150V (50X) 1500V (500X) |
300V (100X) 3000V (1000X) |
700V (100X) 7000V (1000X) |
| Rise time | ≤ 3.5ns | ≤ 3.5ns | ≤ 3.5ns | ≤ 3.5ns |
| Noise | Full bandwidth: 20X: ≤ 20mVrms 200X: ≤ 90mVrms |
Full bandwidth: 50X: ≤ 50mVrms 500X: ≤ 200mVrms |
Full bandwidth: 100X: ≤ 100mVrms 1000X: ≤ 500mVrms |
Full bandwidth: 100X: ≤ 200mVrms 1000X: ≤ 600mVrms |
| CMRR | DC: >80dB 100kHz: >60dB 10MHz: >30dB 100MHz: >26dB |
DC: >80dB 100kHz: >60dB 10MHz: >30dB 100MHz: >26dB |
DC: >80dB 100kHz: >60dB 10MHz: >30dB 100MHz: >26dB |
DC: >80dB 100kHz: >60dB 10MHz: >30dB 100MHz: >26dB |
| Delay time | 6.5ns (20X) 3.5ns (200X) |
6.2ns (50X) 2.9ns (500X) |
3.7ns (100X) 3.2ns (1000X) |
4.2ns(100X) 4.1ns(1000X) |
| Input impedance | 6MΩ/1.67pF (differential) 3MΩ/3.3pF (each input to ground) |
13.2MΩ/1.67pF (differential) 6.6MΩ/3.3pF (each input to ground) |
30MΩ/0.78pF (differential) 15MΩ/1.57pF (each input to ground) |
120MΩ/0.78pF (differential) 60MΩ/1.57pF (each input to ground) |
| Output impedance | 1 MΩ | |||
