Overview

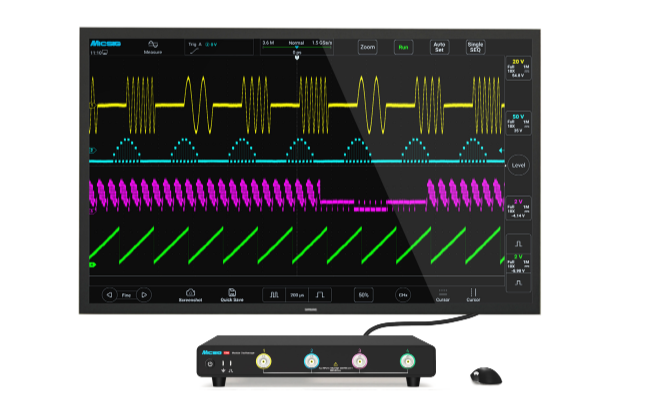

Micsig MH034 series high-resolution modular oscilloscope is only 3 cm high, making it the ultimate space-saving solution for desktops and test racks. The MH034 series features a 12-bit ADC, offering up to 500MHz analog bandwidth, 3GSa/s real-time sampling rate, 360Mpts memory depth, and 4 analog channels. It supports HDMI direct connection to the display, multi-channel cascading, high-speed data transmission, PC-based remote control, SCPI protocol, secondary development, and trigger waveform input and output, making it a flexible choice for system integration.
Product Features
- 12-bit vertical resolution
- Up to 500MHz bandwidth
- DC gain accuracy ≤ 1%
- Simultaneous data saving on multi-channel
- High / Low pass bandwidth filtering
- Baseline noise of less than 85µVrms
- Segmented storage function
- Only 3 cm height, easily installed in a rack
- Advanced math and FFT function
- Supports multiple saving formats
- Support multi-channel cascading of oscilloscopes
- Support high-speed data transmission
- Supports rack-mounted installation
- Supports HDMI direct connection to the display
- Supports 6-digit hardware frequency counter
- Supports SCPI and secondary development
- Compatible with mobile apps and PC remote control
- Support trigger waveform input and output
- Standard decodes: RS-232/422/485/UART, CAN, CAN FD, LIN, SPI, I²C, ARINC-429, MIL-STD-1553B
Key specifications
| Model | M034-500Pro | M034-350Pro | M034-250Pro | M034-500 | M034-350 | M034-250 |
|---|---|---|---|---|---|---|
| Bandwidth | 500MHz | 350MHz | 250MHz | 500MHz | 350MHz | 250MHz |
| Rise time | ≤ 0.7ns | ≤ 1ns | ≤ 1.4ns | ≤ 0.7ns | ≤ 1ns | ≤ 1.4ns |
| Analog channels | 4CH | 4CH | 4CH | 4CH | 4CH | 4CH |
| Sampling rate | 3GSa/s | 3GSa/s | 3GSa/s | 3GSa/s | 3GSa/s | 3GSa/s |
| Memory depth | 360Mpts | |||||
| Waveform capture rate | 230,000wfms/s | 230,000wfms/s | ||||
| Configuration | Software used for system integration | Basic Software | ||||
| Baseline Noise | < 85µVrms | |||||
| Vertical Resolution | 12 bit | |||||
| Input Impedance | 50Ω / 1MΩ | |||||
| Bus decoding | RS-232/422/485/UART, CAN, CAN FD, LIN, SPI, I²C, ARINC429, 1553B | |||||
| Interface | USB 3.0/2.0 Host, USB Type-C, LAN, SFP+, HDMI, Trigger in/out, 10MHz in/out | |||||
| Trigger | Edge, Pulse width, Logic, Nth-edge, Runt, Slope, Timeout, Video, Serial bus | |||||
| Dimension | 224.5*30*264.3mm (Width x Height x Depth) | |||||
