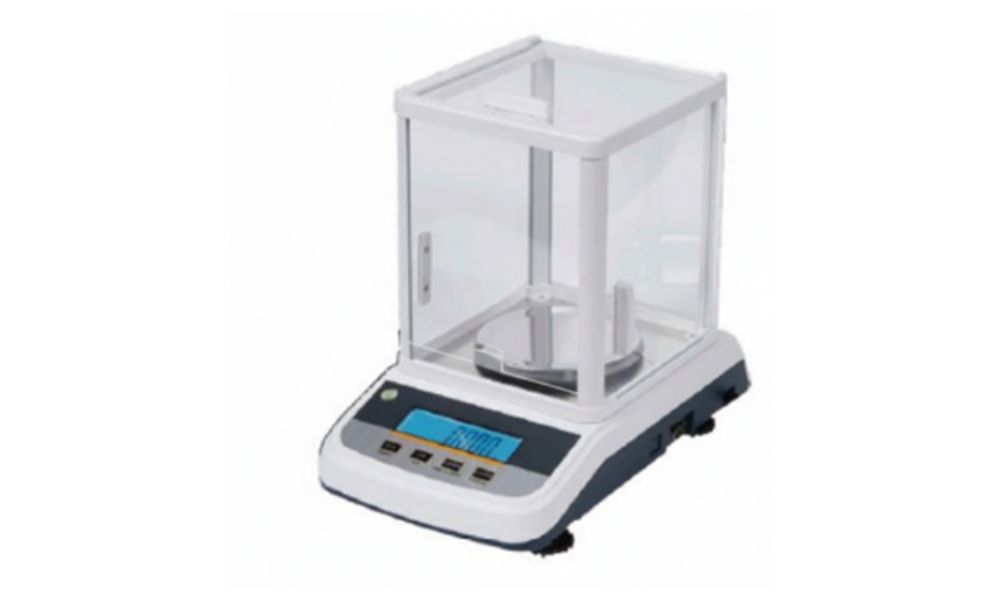

TF Series Analytical Balance 1 mg /0.01g/0.1g
High precision strain gauge loadcell, skip the tedious operation process. Dual interface, dual display optional, provide more intelligent applications in the field of strain gauges, and provide customers with good cost performance and convenient use experience.
Main Features
- High contrast LCD display
- Big size stainless steel scale pan
- Glass windshield
- Automatic fault detection, overload protection
- Unit conversion, counting, percentage, etc.
- Tare function
- RS232C interface (Option USB interface)
- Below weighing facility (Optional)
- Dual display (Optional)
- 4 x AA battery (Optional)
| Model No. | TF1003 TF1003S |
TF2003 TF2003S |
TF3003 TF3003S |
TF5003 TF5003S |
|---|---|---|---|---|
| Capacity | 0-100g | 0-200g | 0-300g | 0-500g |
| Readability | 1mg | |||
| Repeatability(≤) | ±2mg | |||
| Linearity(≤) | ±2mg | |||
| Interface | RS232C/USB(Optional) | |||
| Pan Size | Φ90mm | |||
| Product Size | 32×19.5×28cm | |||
| Packing Size | 37.5×25.5×34cm | |||
| N.W. | 2600g | |||
| G.W. | 3500g | |||
| Power | 110V/220-240V AC | |||
