Overview

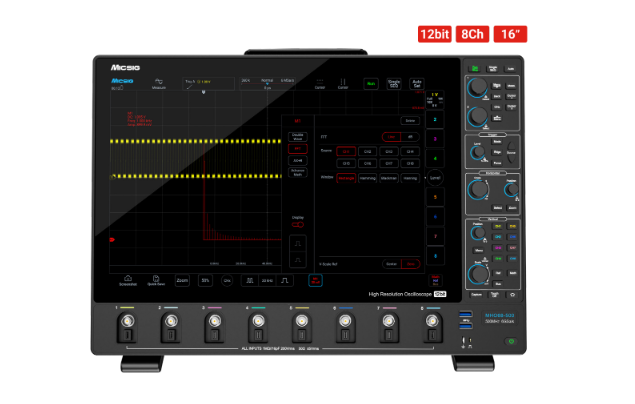

The MH06 series offers 12-bit vertical resolution, 8 analog channels, 350MHz, 500MHz or 1GHz bandwidth options, and 6 GS/s sampling with 1.8Gpts memory depth. Its 3.76cm ultra-thin design, 16-inch 1920*1200 touchscreen, and support for simultaneous display of 40 measurement items make it a powerful platform for high-density signal analysis.
Product Features
- 12-bit vertical resolution
- 8 analog channels
- 3.76cm Ultra-Thin design
- 350MHz, 500MHz or 1GHz options available
- 6 GS/s sampling rate, 1800 Mpts memory depth
- 16-inch touch screen, 1920*1200 resolution
- Simultaneous display for 40 measurement items
- Advanced math and FFT function
- Segmented storage function
- Simultaneous data saving on multi-channel
- High / Low pass bandwidth filtering
- Mobile APP, PC remote control, SCPI commands
- 256G internal storage to save large data
- Bus decodes: RS-232/422/485/UART, CAN, CAN FD, LIN, SPI, I²C, ARINC-429, MIL-STD-1553B
Key specifications
| Model | MHO68-1000 | MHO68-500 | MHO68-350 |
|---|---|---|---|
| Bandwidth(-3dB)@50Ω | 1GHz | 500MHz | 350MHz |
| Bandwidth(-3dB)@1MΩ | 500MHz | 500MHz | 350MHz |
| Rise time @ 50 Ω | ≤ 0.4ns | ≤ 0.7ns | ≤ 1ns |
| Analog channels | 8 | 8 | 8 |
| Sampling rate | 6GSa/s | 6GSa/s | 6GSa/s |
| Memory depth | 1.8Gpts | 1.8Gpts | 1.8Gpts |
| Waveform capture rate | 280,000 wfms/s | 280,000 wfms/s | 280,000 wfms/s |
| Interface | USB 3.0/2.0 Host, USB Type-C, LAN, HDMI, Aux In/Out, 10 MHz clock signal In/Out | ||
| Vertical resolution | 12 bit | ||
| Input impedance | 1MΩ±1%, 15pF±3pF || 50Ω ±1% | ||
| Display | 16" TFT LCD touch screen, 1920*1200 resolution | ||
| Dimension / Net weight | 443.6*307.2*37.6mm / 5.5kg | ||
