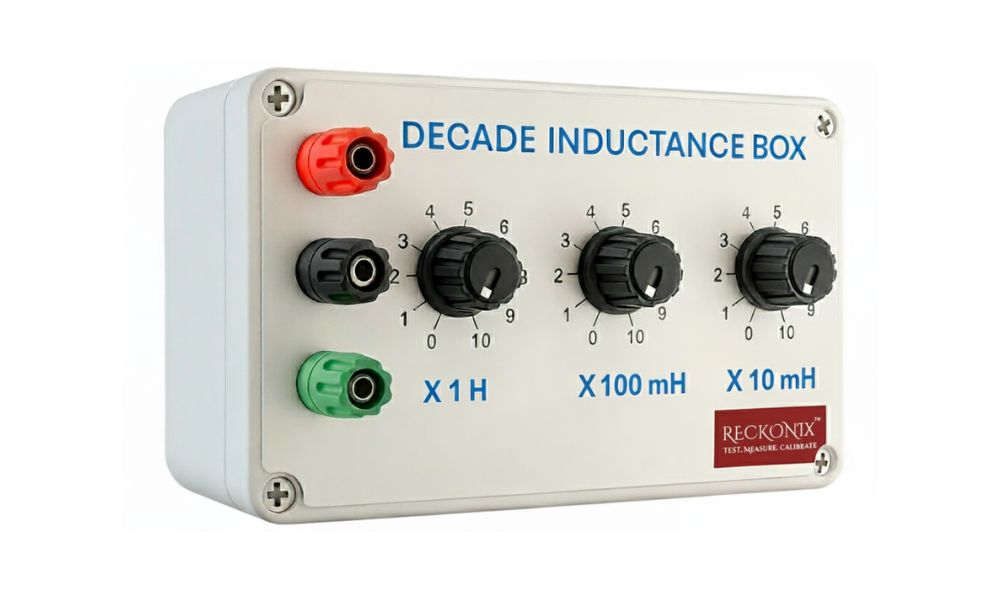

Decade Inductance Box
The Reckonix RX DIB is a precision decade inductance box designed for high-accuracy testing, measurement, and calibration. It is primarily used to verify and calibrate electronic equipment by allowing users to select specific inductance values through multiple internal decades.
The Decade Inductance Box is designed for accurate and repeatable inductance substitution in measurement, testing, calibration, and educational applications. It offers a wide inductance range with precise decade switching, ensuring stable and reliable performance in laboratory environments.
Key Features
- Wide inductance range from 10 μH to 1.1111 H
- High accuracy of ±1% across all decades
- Smooth rotary decade switches for precise selection
- High-stability inductors with low core losses
- Rugged, laboratory-grade enclosure
- Clear decade markings for quick and error-free operation
Technical Specifications
| Decade Range | Resolution | Accuracy |
|---|---|---|
| 10 µH | 10 µH | ±1% |
| 100 µH | 100 µH | ±1% |
| 1 mH | 1 mH | ±1% |
| 10 mH | 10 mH | ±1% |
| 100 mH | 100 mH | ±1% |
Electrical Specifications
- Total Inductance Range: 10 μH to 1.1111 H
- Inductor Type: High-stability precision inductors
- Switching Method: Rotary decade switches
- Core Material: Low-loss magnetic core (as applicable)
- Operating Conditions: Standard laboratory environment
Applications
- Calibration and test laboratories
- Educational institutions & technical training centers
- Electronics design and analysis
- R&D laboratories
- Quality control and production testing
