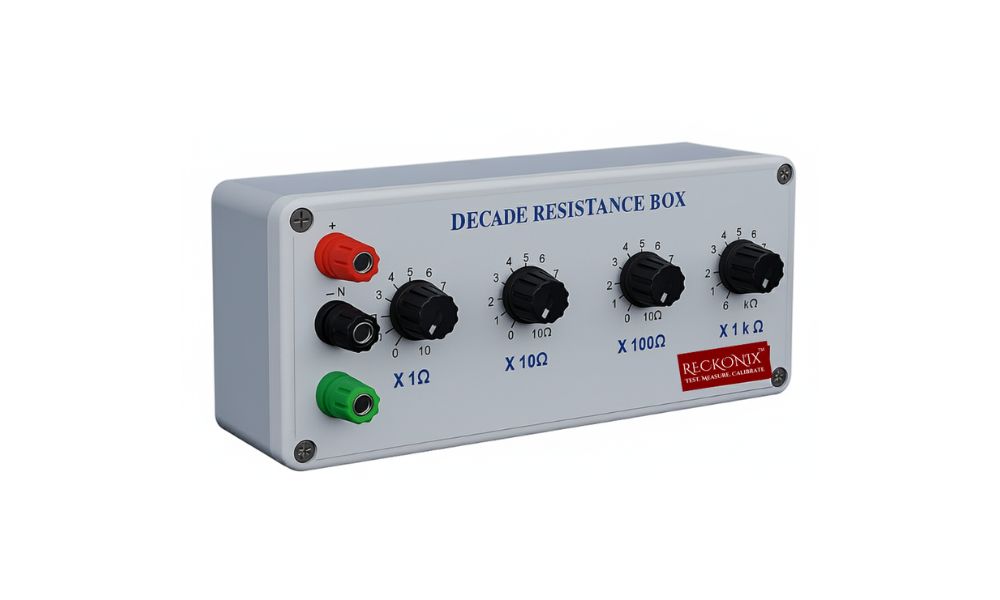

Decade Resistance Box
The Reckonix RX DRB Decade Resistance Box is a specialized laboratory electrical tool designed to provide precise, adjustable resistance values in electronic circuits. It is primarily used as a standard for calibrating instruments, testing circuit designs, and simulating specific resistance values during prototyping.
The Decade Resistance Box is designed for accurate resistance substitution in laboratories, educational institutions, calibration setups, and R&D applications. It offers a wide resistance range with high stability, low temperature coefficient, and precise decade switching for reliable measurements.
Key Features
- Wide resistance range from 1 Ω to 1111.11111 MΩ
- High accuracy with multiple precision grades
- Smooth rotary decade switches for easy selection
- Robust enclosure suitable for laboratory environments
- Ideal for calibration, testing, and educational use
- Low contact resistance and excellent long-term stability
Technical Specifications
| Decade Range | Resolution | Accuracy |
|---|---|---|
| 1 Ω | 1 Ω | ±0.5% |
| 10 Ω | 10 Ω | ±0.25% |
| 100 Ω | 100 Ω | ±0.1% |
| 1 kΩ | 1 kΩ | ±0.1% |
| 10 kΩ | 10 kΩ | ±0.1% |
| 100 kΩ | 100 kΩ | ±0.1% |
| 1 MΩ | 1 MΩ | ±0.1% |
| 10 MΩ | 10 MΩ | ±0.25% |
| 100 MΩ | 100 MΩ | ±0.5% |
Electrical Specifications
- Total Resistance Range: 1 Ω to 1111.11111 MΩ
- Resistance Type: High-stability precision resistors
- Switching Method: Rotary decade switches
- Insulation Resistance: High insulation for low leakage
- Operating Temperature: Standard laboratory conditions
Applications
- Calibration laboratories
- Educational & training institutes
- Electronics testing & troubleshooting
- R&D laboratories
- Quality control departments
