Overview

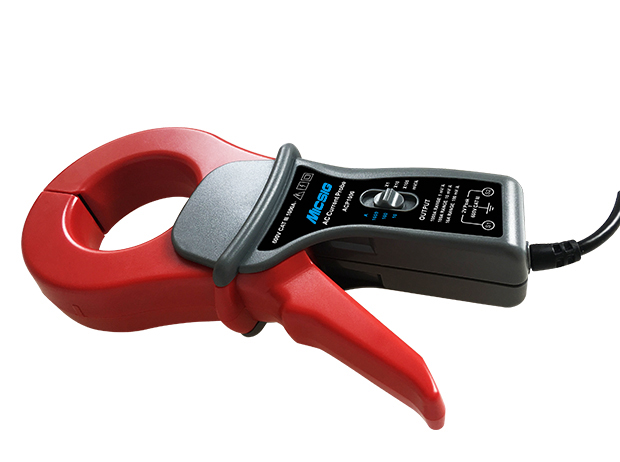

The AC current probe ACP1000 is suitable for AC current measurement. Its measurement bandwidth is from 10Hz to 100kHz, the maximum measurable current is 1000A with an accuracy of 1%. It has a standard BNC interface, compatible with all brands of oscilloscopes. With three adjustable range gears of 10A/100A/1000A, a clamp design, a clamp jaw diameter of up to 52mm, no external power supply needed, it's portable, easy to use, made of high-quality and durable materials, and widely used in scenarios like motor drives, inverters, switching power supplies, and avionics.
Application
- Current, electrical energy, power factor correction devices
- Motor drivers, inverters, converters
- Industrial control devices
- Oscilloscopes and harmonic analyzers
- Aviation electronic equipment
Key specifications
| Model | Input | Rated Output | Frequency(Hz) | Rated Burden | Accuracy grade |
|---|---|---|---|---|---|
| ACP1000 | 0.1~10A | 100mV/A | 10-100k | ≥ 100kOhms | 3% ± 10mV |
| 0.1~100A | 10mV/A | 2% ± 5mV | |||
| 1~1000A | 1mV/A | 1% ± 1mV | |||
| Others | |||||
| Current range | 0.1A~1000A | ||||
| Maximum working current | 2000A (2s) | ||||
| Operating frequency | 10Hz ~ 100kHz | ||||
| Maximum accuracy | 1% | ||||
| Operating Temperature | -15°C to 75°C | ||||
| Safety class | CAT III 600V | ||||
| Maximum conductor diameter | 52 mm | ||||
| Dimensions | 111mm x 216mm x 45mm | ||||
| Output cable | 1.5m BNC insulated coaxial output cable can connect directly to an oscilloscope, and can be used with Multimeters with optional BNC/Banana adapter | ||||
| Environmentl compliance | RoHS compliane | ||||
| Certification | CE compliane | ||||
