SATO Series

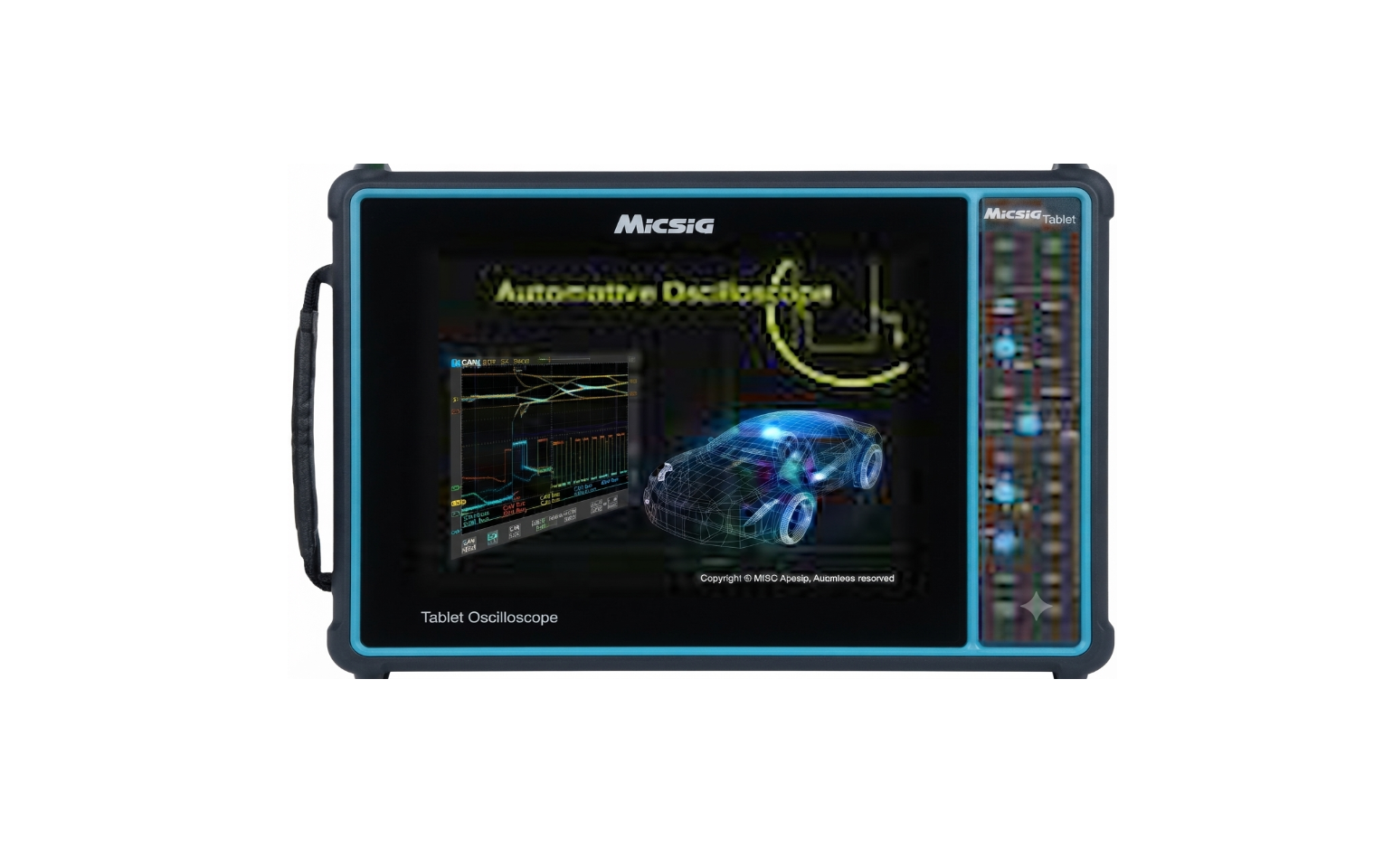

SATO Series oscilloscope
Get A QuoteCall Now

SATO Series

Model SATO2002 SATO1004
Bandwidth 200MHz 100MHz
Rise Time ≤1.75ns ≤3.5ns
Analog Channels 2 4
Display Industrial 8" TFT-LCD (800*600)
Dimension/Weight 265*192*50mm/1.9kg (with battery)
Key Features
  • Professional automotive diagnostic tests
  • Excellent connectivity: HDMI, USB 3.0/2.0 Host, USB Type-C
  • Innovative PC & phone App remote control
  • Up to 5h battery life & compact size, perfect for field work
  • Support Wi-Fi, USB, computer control and SCPI
  • Power-off switch lock, safe to travel and store
  • Bus decodes: RS-232/422/485/UART, CAN, CAN FD, LIN, SPI, I²C, ARINC429, 1553B

Automotive
