Overview

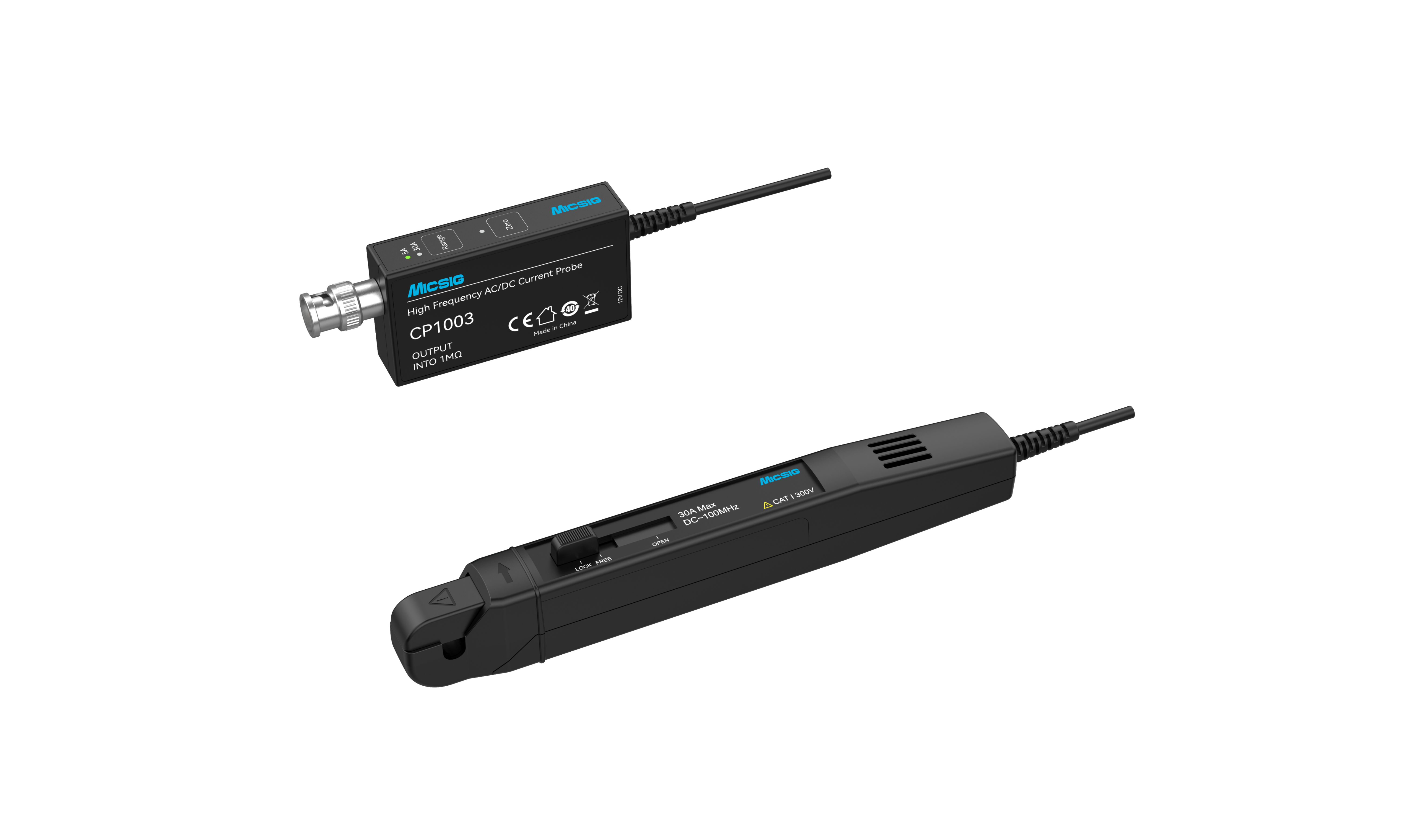

The Micsig CP Series is a family of high-frequency AC/DC current probes built for accurate waveform capture in fast-switching and high-current test environments. The range covers models from 5 MHz up to 100 MHz, with dual-range operation for both small and large current measurements, standard BNC output, and practical features such as one-touch degaussing, auto-zero, overload indication, and jaw-status feedback.
Key specifications
| Model | CP3008 | CP3005 | CP1510 | CP503B | CP1003B |
|---|---|---|---|---|---|
| Bandwidth | 8MHz | 5MHz | 10MHz | 50MHz | 100MHz |
| Rise time | ≤ 53ns | ≤ 70ns | ≤ 46ns | ≤ 7ns | ≤ 3.5ns |
| Max. current input | 300Arms, 500Apk | 300Arms, 500Apk | 150Arms, 300Apk | 30Arms, 50Apk | 30Arms, 50Apk |
| Range | 50Arms (50A) 300Arms (300A) |
50Arms (50A) 300Arms (300A) |
30Arms (30A) 150Arms (150A) |
5Arms (5A) 30Arms (30A) |
5Arms (5A) 30Arms (30A) |
| Accuracy | ±1% ±10mA (50A) ±1% ±100mA (300A) |
±1% ±10mA (50A) ±1% ±100mA (300A) |
±1% ±1mA (30A) ±1% ±10mA (150A) |
±1% ±1mA (5A) ±1% ±10mA (30A) |
±1% ±1mA (5A) ±1% ±10mA (30A) |
| Lowest measurable current | 10mA (50A) 100mA (300A) |
10mA (50A) 100mA (300A) |
10mA (30A) 100mA (150A) |
1mA (5A) 10mA (30A) |
1mA (5A) 10mA (30A) |
| Noise | <1.5mArms (50A) <12mArms (300A) |
<1.5mArms (50A) <12mArms (300A) |
<1.5mArms (30A) <10mArms (150A) |
<4mApp (5A) <30mApp (30A) |
<4mApp (5A) <30mApp (30A) |
| Output sensitivity | 1V / 10A (50A, 10X) 1V / 100A (300A, 100X) |
1V / 10A (50A, 10X) 1V / 100A (300A, 100X) |
1V / 10A (30A, 10X) 1V / 100A (150A, 100X) |
1V / 1A (5A, 1X) 1V / 10A (30A, 10X) |
1V / 1A (5A, 1X) 1V / 10A (30A, 10X) |
| Power supply | DC 12V | ||||
| Max. conductor diameter | 20mm | 20mm | 20mm | 5mm | 5mm |
| Cable length | 2m | 2m | 2m | 1m | 1m |
| Interface | Standard BNC interface | ||||
