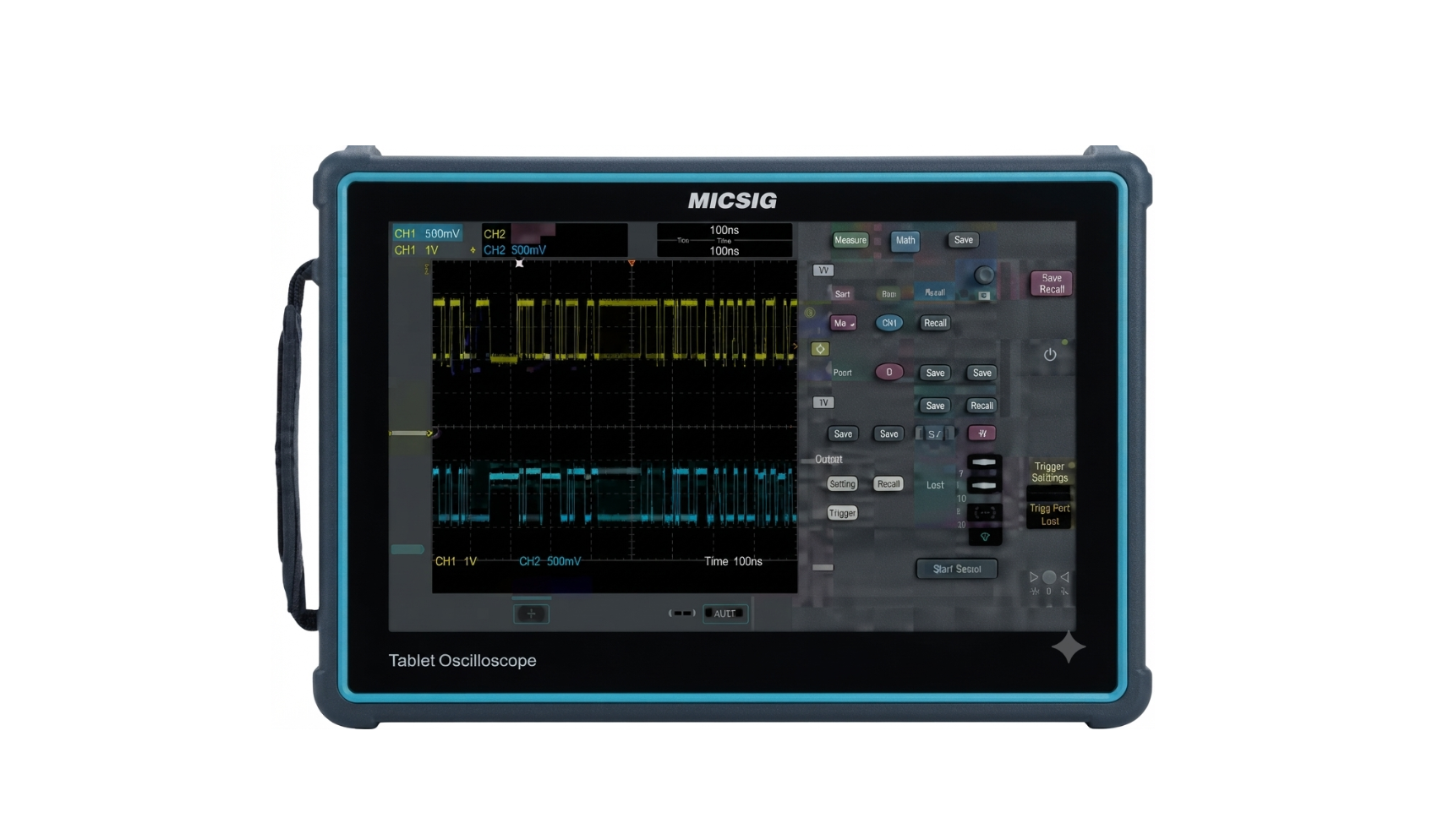

ATO Series
| Model | ATO3004 | ATO2004 | ATO2002 | ATO1004 |
|---|---|---|---|---|
| Bandwidth | 300MHz | 200MHz | 200MHz | 100MHz |
| Rise Time | ≤1.16ns | ≤1.75ns | ≤1.75ns | ≤3.5ns |
| Analog Channels | 4 | 4 | 2 | 4 |
| Display | 10.1 inch LCD capacitive touch display, 1280*800 resolution | |||
| Dimension/Weight | 265*192*50mm/1.9kg (with battery) | |||
