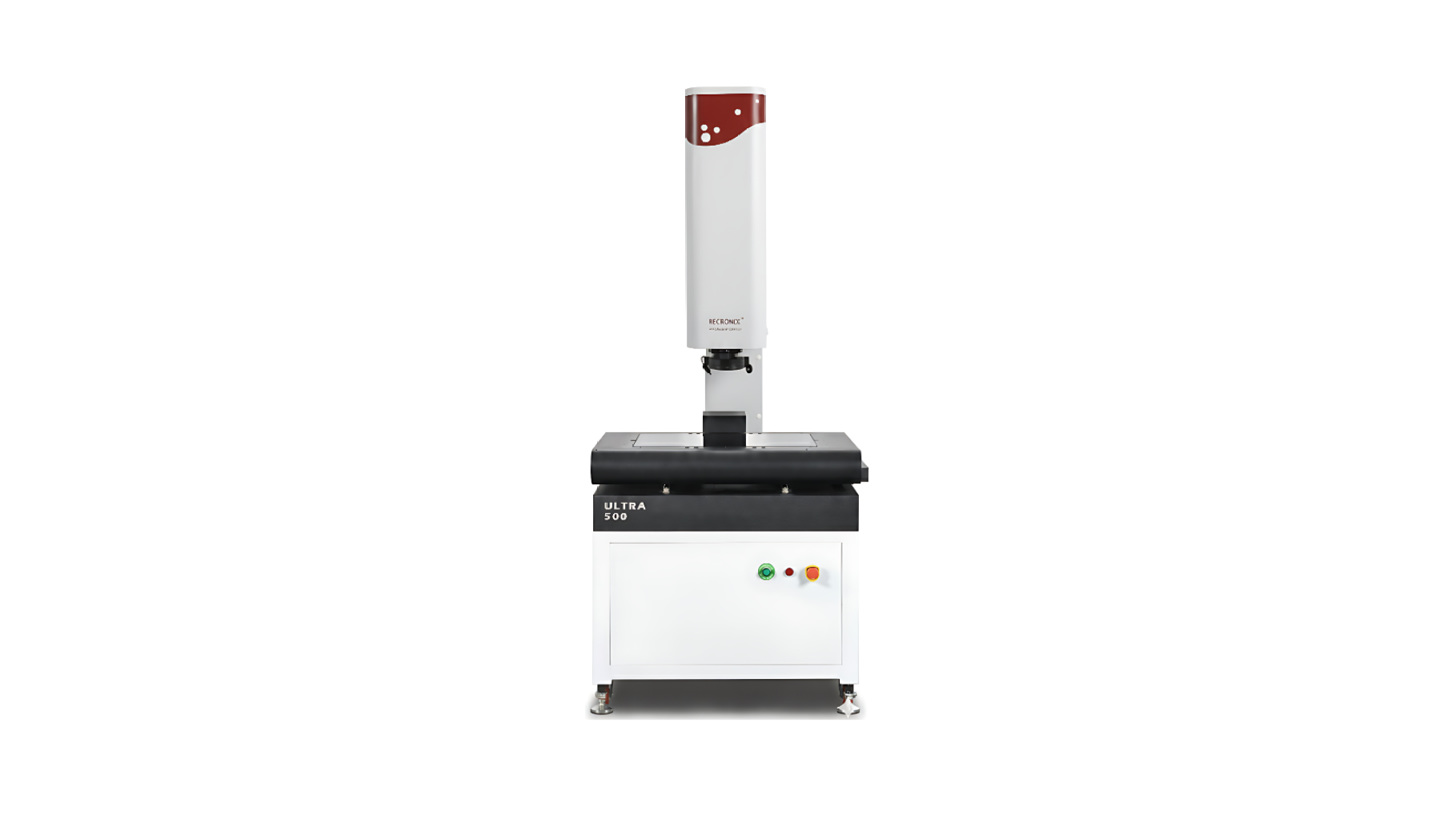

Fully Automatic Vision Measuring Machine
- Measuring Range: 200/300/400/500
- Accuracy (μm): 2.5+L/200
- Repeatability (μm): 2.5
- Weight (kg): 320
- CCD camera: 1.3M pixel GIGA HD digital camera
- Zoom lens: Fully automatic zoom lens 1-10X
- Magnification: 18-195X
- FOV: 8.1-1.3mm
- Work distance: 82mm
- Linear scale resolution: 0.1μm
- Drive System: CNC control, AC fully closed loop servo motor drive: joystick control, mouse/keyboard control
- Illumination System: Programmable 8 section LED ring surface light
