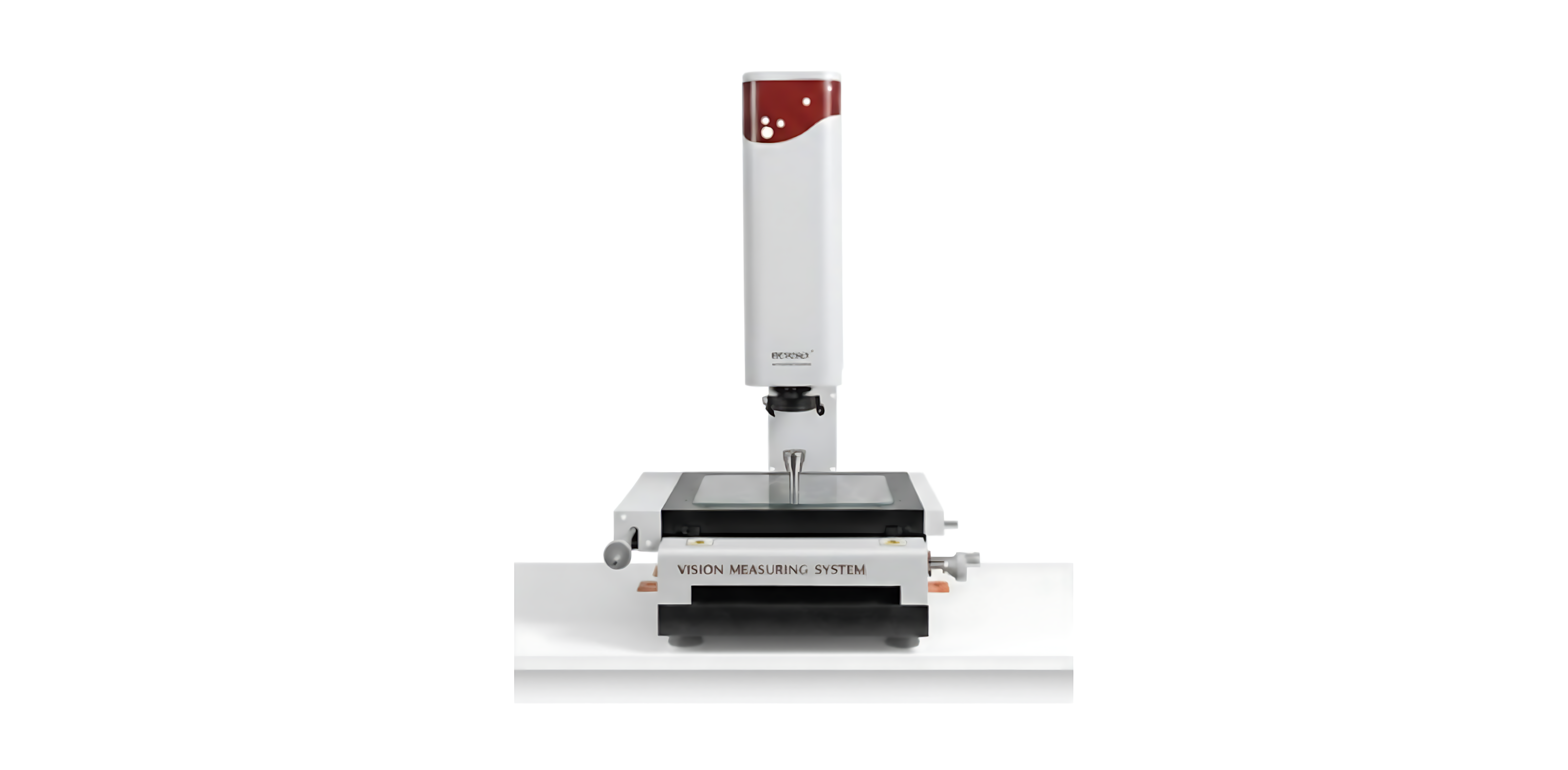

Manual Vision Measuring Machine
- Measuring Range: 200/300/400/500
- Accuracy: 2.5 + L/200 μm
- Repeatability: 2.5 μm
- Optical System
- CCD: 1.3M pixel HD GIGA digital camera
- Zoom Lens: Manual zoom lens 0.7 - 4.5X
- Magnification: 18-195X
- FOV: 8.1-1.3 mm
- Work Distance: 90 mm
- Control and Illumination
- Drive System: X/Y/Z axis manual control
- Illumination System: Programmable LED 8 section ring surface light, parallel light at the bottom of the LED
